Inner Vane Pump, Flat Vane Pump, Disc Pump

Product Description

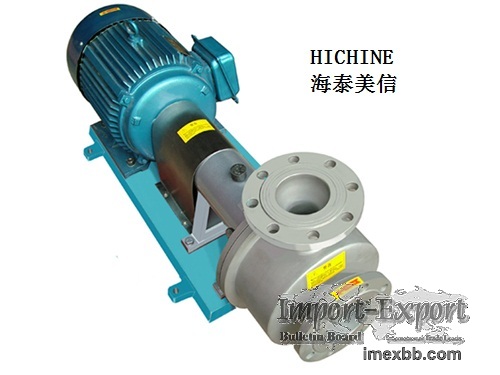

Inner Vane pump, Flat Vane Pump, Disc pump
Introduction:
Due to its special function, it can operates in the harsh conditions more
reliable, superior, more economical and more efficient. Most important is no
destroy to the media. Suitable for conveying different viscosity medium and
even high viscosity medium, containing particles which need to be protected
from destruction and media that should be soft transported and not fit for high
impact.
Application:
Suitable for conveying different viscosity medium and even high viscosity
medium. Containing Solid particles as much as 75% (Can be designed to the
requirement of 30-80MM particles) and the media need to protect against
particle from destroyed medium that containing gas or air as 68%. Cotton pulp,
wood pulp containing various fiber. Media should be soft transported and
shouldn't be high impact and Sewage waste.
Characteristics:
Due to its special function, it can operates in the harsh conditions more
reliable, superior, more economical and more efficient. Most important is no
destroy to the medium which even can be fragile blood cells. When transport
particle and long fiber waste without winding, there is No plug. Inner Vane
pump guarantee uniformity of the fluid transport without dehydration and fiber
loss. Inner Vane pump mechanical advantages is there's no impact, no pulse, no
radial load, without wearing so-leaf pump do not need too many parts
replacement and maintenance.

Working principle:
The principle is that it takes special plate as Vane, pump fluid medium from
inlet and discharge to the outlet by its Physical viscous driven and special
structure of Vane. Bob-type centrifugal Inner Vane pump deliveries rely on the
laminar formatted by the driven of its physical viscous and the fluid medium.
Therefore, the media does not have any impact on pump flow line, Vane contact
with the wall-flow Vane with a relatively static synchronous movement without
friction. In the absence of the impact of media to undermine your product, it
can protect the laminar flow pump, so Inner Vane pump can fundamentally solve
the products destroyed, and the media on the body of the Vane wear plug Vane,
produce such as pump cavitation common ills.

Technical parameters:
Parameters
Modelflow(T/H)head(m) , powerKw)speed(r/min)inletoutlet
HBP50-40-160102 , 432840DN50DN40
HBP50-40-200103542840DN50DN40
HBP50-40-200S8121.11450DN50DN40
HBP65-50-16025 , 2542840DN65DN50
HBP65-50-20025355.52840DN65DN50 ,
HBP65-50-25025507.52840DN65DN50
HBP65-50-20 , 0S20122.21450DN65DN50
HBP65-50-250S202031450DN6 , 5DN50
HBP80-65-2005035112800DN80DN65
HBP80-6 , 5-250505018.52800DN80DN65
HBP80-65-250S40204145 , 0DN80DN65
HBP80-65-300S40325.51450DN80DN65
H , BP100-80-2008035152800DN100DN80
HBP100-80-25080 , 50222800DN100DN80
HBP100-80-250S70207.51450DN10 , 0DN80
HBP100-80-300S7032111450DN100DN80
HBP1 , 50-100-250S10020111450DN150DN100
HBP150-100-300 , S10032151450DN150DN100
HBP150-100-400S100552214 , 50DN150DN100
HBP200-150-250S18018151450DN200DN1 , 50
HBP200-150-300S20030301450DN200DN150
HBP2 , 00-150-400S20045451450DN200DN150
HBP250-200-250 , S40018301450DN250DN200
HBP250-200-300S400305514 , 50DN250DN200
HBP250-200-400S40048751450DN250DN2 , 00

Note"S"is Assigned four-grade motor

Minimum Order: 1 sets
