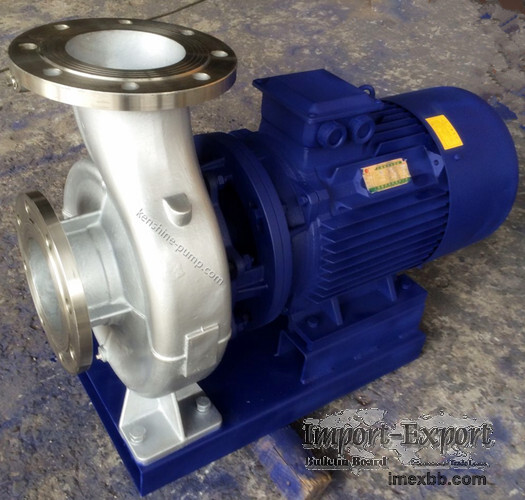

ISWH Stainless steel horizontal pump closed coupling

ISWH horizontal Stainless-steel pipeline centrifugal pump

Material (Stainless steel pump)

ISWH stainless steel centrifugal pump is made of stainless-steel material (SUS304,
SUS316, SUS316L etc.) and equipped with hard alloy mechanical seal. The stainless-
steel pump can be driven by standard motor or explosion proof motor as the single
stage single suction centrifugal pipeline pump.



Pumped liquids

ISWH horizontal stainless-steel pipeline pump is used to convey corrosive liquid
without solid particles with viscosity similar to water. ISWH stainless steel
centrifugal pump is widely used in petroleum, chemical industry, metallurgy,
electric power, papermaking, food pharmaceutical and synthetic fiber sectors.
Pumped Liquid temperature is -20℃ to 120℃.



Features:

1. Same inlet and outlet diameter

2. Stable performance, no vibration, low noise

3. No leakage with high-quality mechanical seal

4. Convenient usage and maintenance

5. Pump can be used in series or parallel for the required performance.



Model description

ISWH50-160

ISWH: stainless steel chemical centrifugal pump

50: pump inlet and outlet(50mm)

160: nominal diameter of impeller (160mm)



Performance

Q:2-1500m3/h

H: 3-125m

Pump inlet and outlet: 15-600mm

Pump material: SUS304,SUS316,SUS316 etc.

Minimum Order: 1 sets
