Jade Series Transparent LED Display

Jade Series Transparent Glass Window LED Display, see through led screen,
without any change of architectural appearance and transparency of the glass
wall, creating the open view in large space indoors, LED video wall for sale
and make advertising emerge into architecture and life. Glass window display
Jade series transparent led screen's outstanding features: smart control by
mobile APP, wireless data transmission, screen+data cloud+APP, Wifi connection.
High refresh rate in the industry, minimum pixel pitch(able to mass production)
3mm, 3840HZ refresh rate. High contrast ratio 1500:1, stunning color, dynamic
image and eye-catching. Super transparent, more than 85% transparency, the
highest transparency in led screen industry. Simple to use, no complicated
installation, no steel structure, fast positioning and installation, convenient
and quick maintenance. New configuration, the shape innovation of static glass,
new screen displaying, new advertising type.

Screen Size
1000*500, 500*500

Application Scenarios
Glass wall, glass window, large indoor space

Jade Screen Series
Transparency: 87%

Brightness: 5500cd/㎡

Viewing Angle: 120°

Depth: 21mm

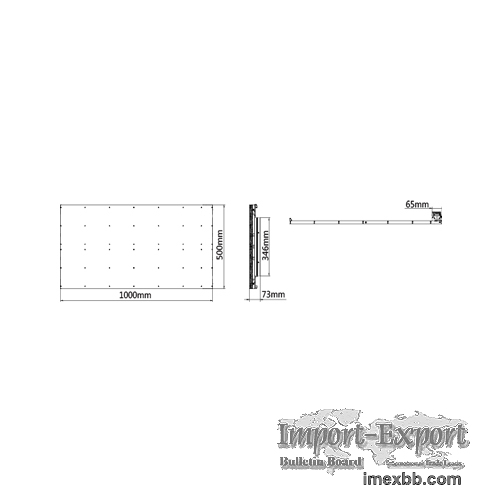

Dimensions (unit : mm)
Modular: DIY design, free combination of arbitrary size glass screen. Simple:
no complex installation, no steel structure, quick positioning, quick
installation, convenient and quick maintenance. Brilliant colors: high contrast
1500: 1, dynamic image, attracting eyeball. New form: change the form of static
glass, new screen display, new advertising methods.

Specifications
Modular, minimalist, colorful; New form: new screen LED display, new
advertising mode. Pixel Pitch(mm): 3.9X7.8, 7.8X7.8, 10.4X10.4; Module Size
(mm): 1000(W) X 500(H), 500(W) X 500(H);

1000X500 500X500 1000X500 500X500
Model J3 J10
0 0 0 0 0
Pixel Pitch (mm) 3.9 x 7.8 10.4 x 10.4
Pixel Density (dot/㎡) 32768 9216
Module Resolution (dot) 256 X 64 256 X 64 96 X 48 48X 48
LED Type SMD 3 in 1 SMD 3 in 1
Brightness (cd/㎡) 5500 5000
Transparency 82% 87%
Viewing Angle 120 120
Grey Leve 14bits 14bits
Scan Mode 1/4 1/4
Refresh Rate (Hz) 3840 3840
Frame Frequency (Hz) 60 60
Avg.Power Consumption (W/㎡) 240 300
Max.Power Consumption (W/㎡) 800 800
Maintenance Back Back
IP IP42 IP42
Working Temp -20~50℃ -20~50℃
Weight (kg/㎡) 14 17 13 16

As one of LED wall manufacturers, we can offer kinds of related products for
sale, if you are interested, please contact us.

Minimum Order: 10 pieces
