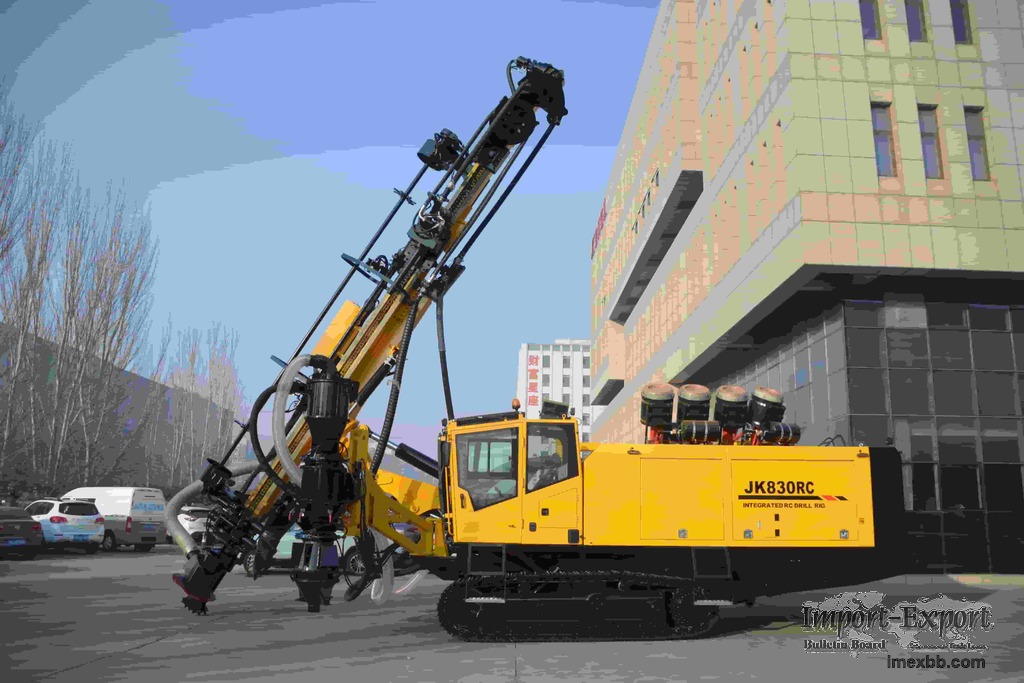

JK830RC Reverse Circulation Drilling Rig
JK830RC is an integrated hydraulic DTH drilling rig, which brings you more
automation, higher working efficiency, better reliability and simpler
operation. The FOPS-approved cabin and automatic pipe handling system come
standard. Heavy-duty undercarriage with wide tracks ensures both extreme
maneuverability and improved safety. The hydraulic dust collecting system meets
the latest environmental protection regulations and it's a reliable solution to
realize the modern green mining.
Weight kg 25000
Length mm 12300
0 mm 3200
Height mm 4200(3500)(3500 without)
Track length mm 3646
Ground contact length mm 2912
Track center distance mm 2349(2749)(total wdth2749)
Track width mm 400
Ground clearance mm ≥400
Track oscillation ° ±10
Walking speed km/h 1.6(slow speed)
3(fast speed)
Max.tractive force KN 170
Grade ability ° 20
)
