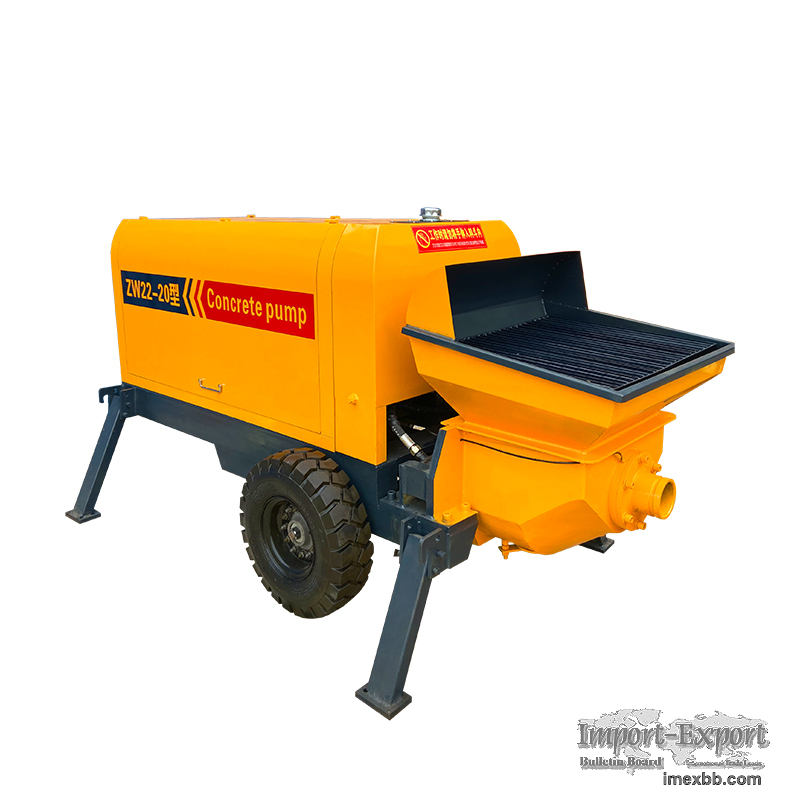

JOKI Trailer Mounted Concrete Pump ZW-20

JOKI Trailer Mounted Concrete Pump ZW-20
Trailer-mounted concrete pump with compact size. Concrete output: 8-15m³/h
ZW-20 Concrete Pump Introduction:
The new JOKI ZW-20 trailer mounted concrete pumps as supplied by Qijiu come in
an array of outputs 15 cubic meters per hour over distances of 80m. Our
trailer-mounted small concrete pumps offer the ideal solution for placing
concrete or shotcrete in hard–to-access areas because of their compact size,
they can also be used as an alternative to truck-mounted concrete pumps on
larger pours that require a slower output rate.

Concrete Trailer Pumps Specifications:
Model ZW-20 Concrete Pump
Concrete output/m³ 8-15
Concrete Pressure/Mpa 11
Hydraulic Pump Output/cc 80
Horizontal Pumping Distance/m 80
Vertical Pumping Distance/m 40
Power 22Kw motor or 40Kw Diesel Engine
Vertical Pumping Distance/mm 120*800
Maxinmun Aggregate/mm 20
Hydraulic Oil Capacity/L 100L
Outlet Size/mm 80
Dimensions/mm 2400*1000*1300
Weight/Kg 1100
Concrete Pump Trailer Advantages:
Reliable equipment quality, small secondary construction column pumps mostly
use dual-pump, dual-circuit open hydraulic systems.

1.The concrete pump trailer moves faster from the source to the pouring
location, which can make you reach the area that the crane cannot reach.

2The pumping system is simple, the components have a long service life and high
reliability.

3Fully enclosed structural electrical control box, protection control device
can work under harsh conditions.

4The Plc dual system control design simplifies the circuit while significantly
improving its reliability and lifetime. Make the equipment work continuously.

Trailer Mounted Concrete Pump JOKI Use:
Effectively solve the problem that the top of the bottom column is difficult to
be poured in high quality during the pouring process of the structural column,
and the flatness and the perceived quality of the structural column are
guaranteed. Trailer mounted concrete pump is suitable for high-rise concrete
fine stone transportation, construction floor group structure column pouring,
high pumping efficiency, pumping system is ten times of manual construction,
which effectively improves production efficiency and saves labor cost. It is
secondary structural column pouring. A good helper. The secondary construction
column pouring machine is small in size, simple in operation, low in labor
intensity, flexible in construction on the floor, and can be placed close to
the lintel and the pillar.https://www.qijiu-machine.com/product-concr , ete-
pump.html

Minimum Order: 1 sets
