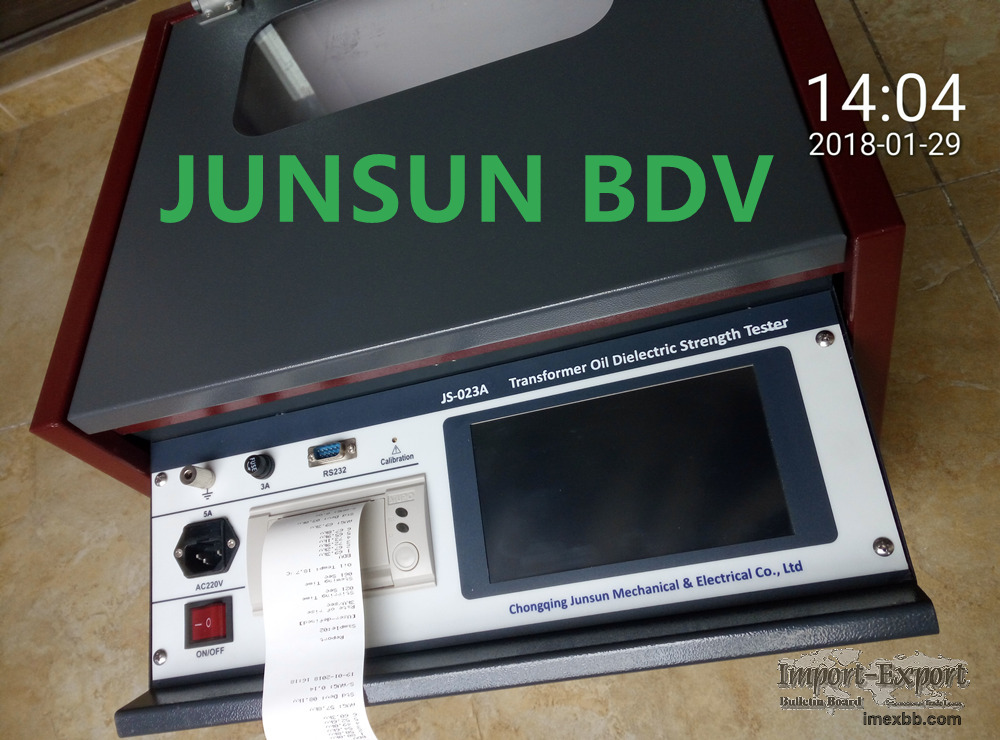

JSME Multifunctional IEC 60156 & ASTM D1816 Transformer Oil BDV Testing Kit

JS-023A SERIES TRANSFORMER OIL DIELECTRIC STRENGTH TESTER is specially
designed for testing the breakdown voltage of transformer oil and other kinds
of insulating oils.

Breakdown voltage testing of insulating oils can help to assess the condition
of these oils within electrical equipment, such as transformers, capacitors,
switches, etc. Based on the test results, the oil can be identified as aged
due to an increase in water content, sludge, or
if the oil has oxidized.

(1) AC220V±10% power supply input
(2) Output voltage：AC 0~100KV (0-80KV can be customized)
(3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
(4) Max test times: 9
(5) Init wait times:0~999s
(6) Stir time: 0~999s
(7) Wait time: 0~999s
(8) Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV
(9) Temperature measurement:
Measurement range : 0℃ to 70℃, or better
Temperature resolution : 1℃, or better
Operating temperature : up to 45℃
(10)Storage:100 groups
(11)7 inch colorful LCD with touch pad
(12)Oil test vessel temperature measurement unit
(13) Weight 38kg
(14) Size: 460 mm*380mm*360mm

Minimum Order: 1 sets
