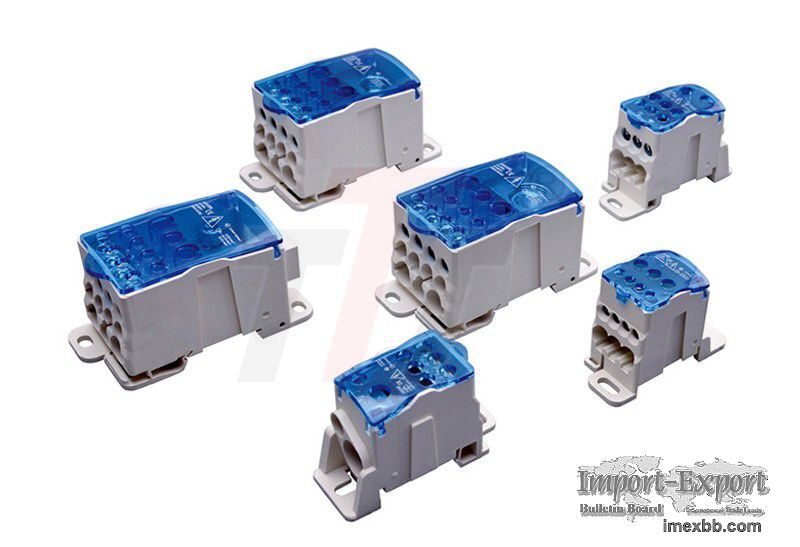

Junction Box Terminal Bars Covered GKUKK

Junction Box Terminal Bars Covered GKUKK
GKUKK series distribution box is the terminal of distribution cable or optical
cable, plays an important part in  connecting the distribution cable or
optical cable with the user's line part, branching the main line. The cable box
can be installed in the bridge frame, box body, pipeline, cable trench and
other small space. It do not occupy the effective area of the building, easy to
install, do not need to cut off the main cable.

Model Spec. Conductors with Starfix Temules X-section(mm2) Quantity of
Hole(pcs) Outline Dimension(mm) DISCRIPTION
GKUKK80 80A 690V IEC in:6~16 *1 30*69*49 Material:
• Material:made from PA Nylon;
• Grade of ame retardant: UL94V0;
• Metal material: brass platedtim;
• The transparent cover good for see the cable is areliable connection
out:2.5~6 *4
out:2.5~16 *2
GKUKK125 125A 690V IEC in:10~35 *1 29*77*46
in:6~16 *1
out:2.5~16 *6
GKUKK160 160A 690V IEC in:10~70 *1 29*77*46
in:6~16 *1
out:2.5~16 *6
GKUKK250 250A 690V IEC in:35~120 *1 47*96*50
out:6~35 *2
out:2.5~16 *5
out:2.5~10 *4
GKUKK400 400A 690V IEC in:95~185 *1 47*96*50
out:6~35 *2
out:2.5~16 *5
out:2.5~10 *4
GKUKK500 500A 690V IEC in:3~8-15~24 *1 49*96*50
out:6~35 *2
out:2.5~16 *5
out:2.5~10 *4

 We are Terminal Body Manufacturer.
Outgoing inspection
Visual check:
- check the absence of outer damages, deep scratches, cracks, chips, corrosion
on the bus and screws.
- all screws are to be entirely tightened.
- check the conformity of the overall and installation dimensions according to
production drawing

Temperature Rise Test of GaoKe Brass Neutral Bars
-         5% of the batch of each standard size, but not less than 10 pcs.
Flame Retardant Test:
-         5% of the batch of each standard size, but not less than 10 pcs.
