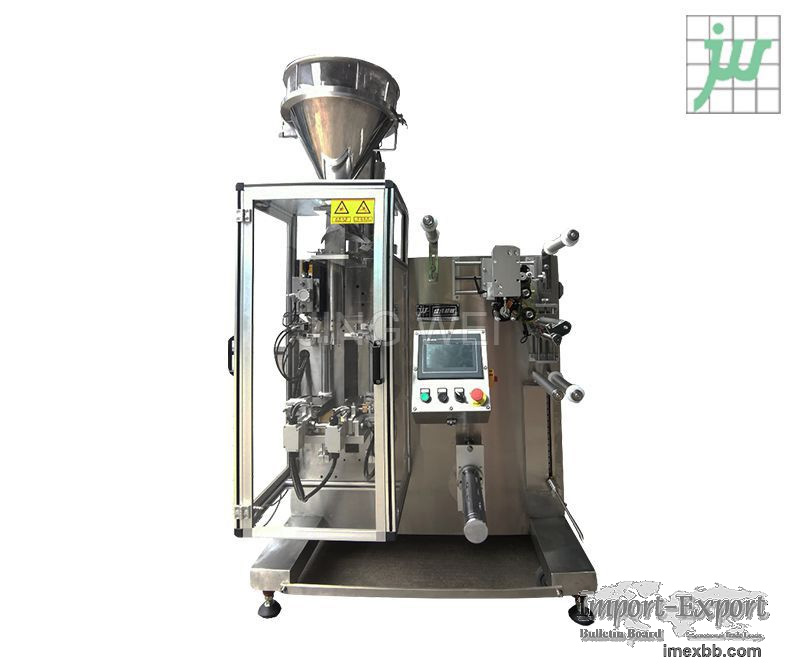

JW-BJ320-Automatic Pillow Type Filling and Packing Machine

JW-BJ320-Automatic Pillow Type Filling and Packing Machine
This back sealing VFFS packing machine is the "middle bag machine" with the
minimum size of back sealing Intermittant packaging machine. Simple operation,
it can realize the switching of three side sealing to back sealing. It can
equipped with a variety of metering feeding structure such as volumetric type,
auger filling type, piston pump type, drawer type and multi-header weighing
type, so it can correspond to more kinds of filling materials.

Advantage & Features
1. Easy Operation, PLC control, HMI operation system, simple maintenance.
2. Filling: Vibrating filling
3. It can be Single powder packing, single granule packing or single powder-
granule mixed packing.
4. Machine material: SUS304
5. Shifting three side to four side sealing.
Packing Application
Suitable for snack foods like pop corn, shrimp chips and etc; nuts such as
peanut, walnut and etc; herbal granule powder and etc; seasoning sauces,
flavour oil and son on.

Technical Parameters
Packing Speed 20-100 bags/min(depends on the bag and filling material)
Filling capacity 5-100g (Depends on material and filling way)
Pouch length 50~160mm
Pouch width 50~150mm
Sealing type three sides sealing or back sealing
Sealing steps Two steps
Film width 100-320mm
Max.rolling diameter of film ¢400mm
Dia of film inner Rolling ¢75mm
Power 3KW, single phase AC220V, 50HZ
Compressed air 0.4-0.6Mpa, 300 NL/Min
Machine dimensions (L)1000mm x(W)1000mm x(H)1200mm(Exclude the measuring
device)
Machine weight 450KG

visit our website:
https://www.jwpackingmachine.com/automatic-pow , der-filing-and-packing-machine/
JW-BJ320-Automatic Pillow Type Filling and Packing Machine
