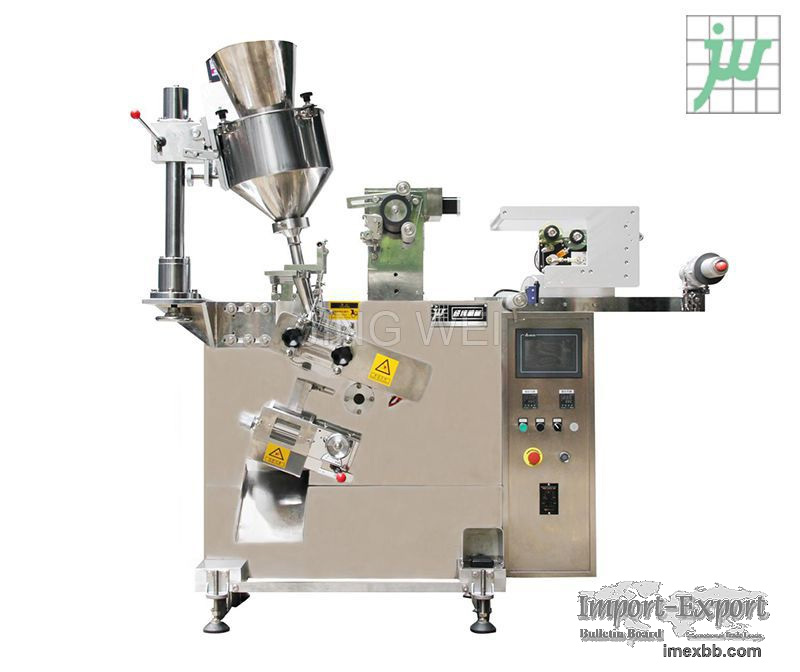

JW-FG150S-Automatic Powder Filling and Packing Machine

JW-FG150S-Automatic Powder Filling and Packing Machine
Automatic Powder Filling and Packing Machine

The high efficiency machine is designed for metering, filling and packaging all
kinds of powder and granular products, like flour, crude sugar, seasoning
flavor, salt, chemical powder, herbal powder etc. Moreover, as a professional
auto VFFS pakaging machine supplier, JINGWEI can provide wholesale automatic
powder filling and packing machine and various best quality packing equipment
for any materials. All the equipment can be customized for filling capacity and
special requirements, welcome to consult for detailed information!

Advantage & Features
1. Easy Operation, PLC control, HMI operation system, simple maintenance.
2. Suitable for powder material packing( Above 60 mesh), such as flour,
chemical powder, herbal powder and etc.
3. Machine Material: SUS304
4. Filling: auger filling
5. High -precision, Accuracy rate ±1.5%
6. Zigzag cutting &Line cutting in chain bags.

Packing Application
Various powder and granule flavour, chemical powder, herbal powder and etc

Technical Parameters
Packing Speed 60-150 bags/min(depends on the bag and filling material)
Filling capacity ≤50ml(It can be customized for oversize)
Pouch length 50-160mm(it can change the bag former for oversize）
Pouch width 50-90mm(it can change the bag former for oversize)
Sealing type Three sides sealing
Sealing steps one step
Film width 100-180mm
Max.rolling diameter of film ¢400mm
Dia of film inner Rolling ¢75mm
Power 2.8KW, three-phase five line, AC380V, 50HZ
Machine dimensions (L)1300mm x(W)900mm x(H)1680mm
Machine weight 400KG
Remarks: It can be customize for special requirements.
