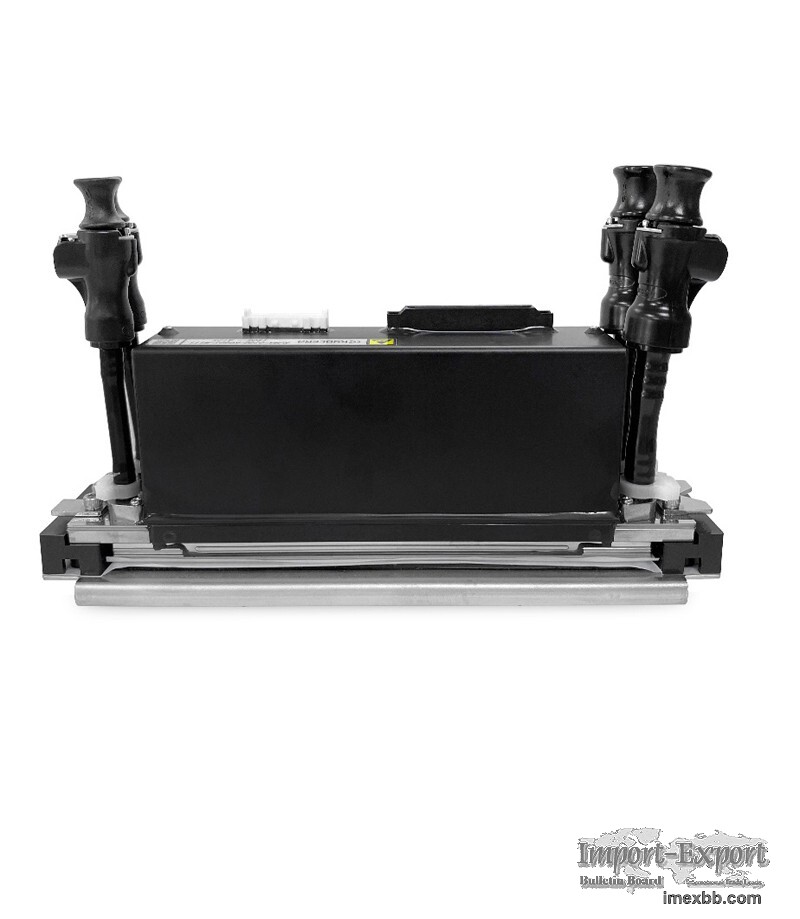

KJ4A-RH-0300 3pl Kyocera for handtop docan Uv flatbed print Head

The Kyocera KJ4A-RH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply. This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 70 m/min by making use of 2,656 nozzles arranged across 108 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

Specifications :

Ink Type: UV Ink
Dimensions: 200 × 30 × 68.9mm
Dry Weight: 420g
Total Nozzles:2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600dpi
Print Width: 108.25mm
Max. Drive Frequency:30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed:70m/min
Input Voltage:3.3 V for logic / 29 V for driving
Temperature Control:Reservoir heater and thermistor are equipped

Compatibility Printer :

Dilli Neo Sun FB2513-04 D-WX

Minimum Order: 1 pieces
