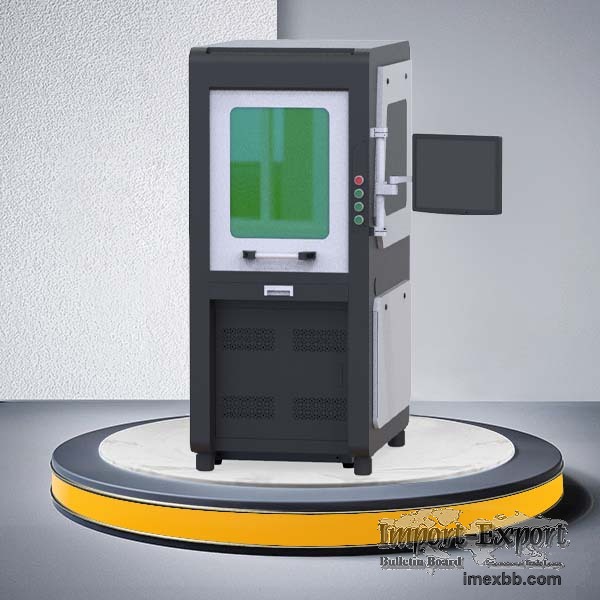

Large Enclosed Laser Marking & Engraving Machine for Industrial Use

The Large Closed Laser Marking Machine is a high-performance engraving solution
designed for industrial applications that require precision, speed, and large-
area marking capabilities. Built with a robust closed-frame structure, this
machine provides a safe and clean working environment, minimizing dust and
debris while ensuring a high-quality output. Its large working area allows for
the engraving of oversized parts, components, and materials, making it perfect
for industries such as automotive, aerospace, electronics, medical devices, and
manufacturing.
Fiber Laser Marker
MOPA Fiber Laser Marker-(20-50W)LCF-ELP SERIES
Model LCF-ELP20 LCF-ELP30 LCF-ELP50
Laser Generator
Laser Power(W) 20W 30W 50W
Frequency(kHz) 1-600kHz 1-600kHz 1-600kHz
Pulsed Width(ns) 200ns 200ns 200ns
Control System
Software EZCAD2.14.11
Controller FBLI-B-V4
Scanning System
Max. Marking Speed(mm/s) 6000mm/s
(12000mm/s optional)
Max. Marking Size (mm) 160*160mm
(70*70, 100*100,200*200,300*300mm optional)
Others
Power Supply 110V/220V Optional
Cable Length 2M (3/4/5M Optional)
Adjustable Z Lift Travel 500mm(700mm Optional)
