LBK9S 2TServo Wire Splicing Machine

Professional connector crimping equipment, designed for specifically for
processing high-end, precision wire
it replaces the traditional soldering together of wires with splice band
crimping, without cold solder and air pollution.With humanization design, it
is easy to operate.
It adopts automatic conveyor with continuous for copper terminal (patent’s
in the official records please don’t counterfeit), it can finish the
processes of cutting, shaping and crimping in one time without scraps,
saving cost.
The mold is customized according to the wire size and the splice band
specifications, and different wire size are configured with different mold.
If the wire size is same, and the splice band size is changed, that need to
accord request to do different mold.
Splice band processed by special lines, and after riveting, the tension-
resistant will be particularly strong, which ensures the stable quality.
Function:
Equipment adopt 1.0KW servo motor
Equipment adopt Touch screen control debugging.
a. terminal splice high
b. terminal pressing power
c. terminal pressing keep time
d. equipment Install pressure testing device
e. using stepper drive feed
f. equipment 90% vertical operation
g. equipment installed according to customer requirements monitor control
pressure contact
Copper width:
. Splice width is according product and require to choose, according for
different industry product has 3 standards.
. 2MM: high precision, low current products, electronic and common product;
. 4MM: common standard product;
. 6MM: High current products, power connection. High tensile strength.
Technical data:
Splice force:2.0 Ton (can adjust)
Splice time:0.01S (can adjust keep crimp time)
Stop splice machine:Can adjust
Motor rating:0.75KW Servo motor
Power supply:AC220/50HZ
Wire diameter:AWG24#-AWG10#
Feeding length parameters:1mm-99.9mm
Cooper width:1.0-6.0mm
splice precision:0.1-0.2(±0.05m)
Dimensions:340*360*4 , 50mm
Crimp Pull Power:Within 15KG
Weight:65KG
Driving way:Servo motor, stepping feeding

Minimum Order: 1 pieces

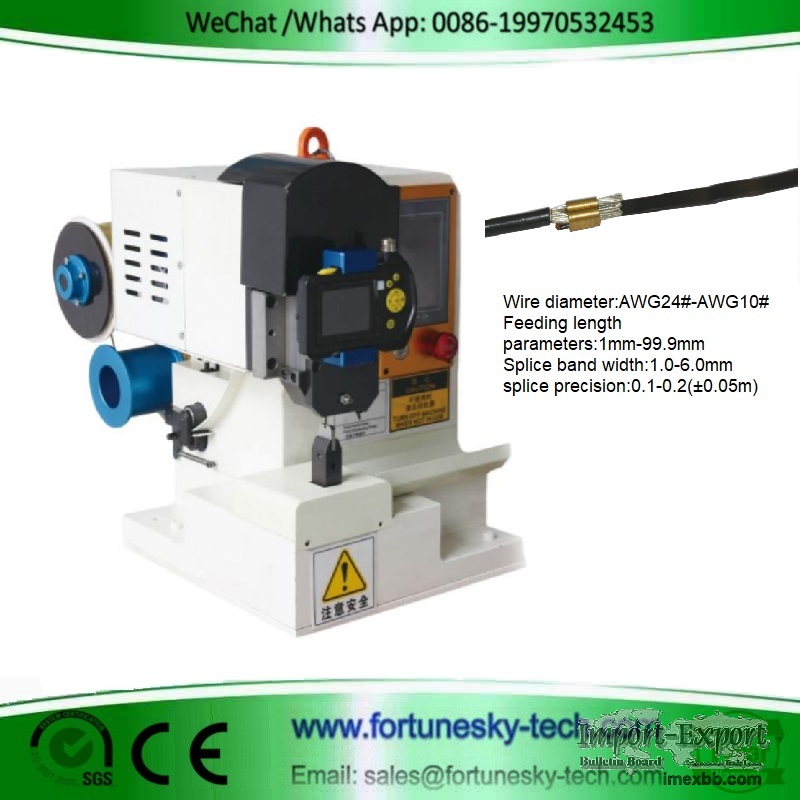

LBK9S 2TServo Wire Splicing Machine
