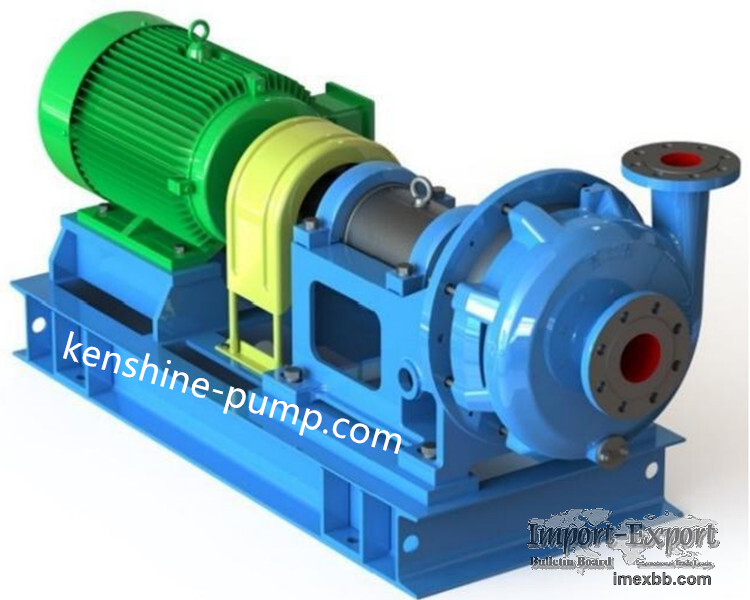

Lcf Desulfurization Pump Centrifugal Horizontal

Lcf Desulfurization Pump Centrifugal Horizontal
LCF series desulfurization pump is a single-stage single suction bracket /frame
type horizontal centrifugal pump, suitable for transporting liquids containing
suspended particles, corrosive and abrasive media, viscous media, liquids with
scaling characteristics, and liquids containing gases.

Widely used in industries such as fertilizer, chemical, sewage treatment, food,
paper, sugar, mining, alumina, etc., it is highly favored by users in the industry
for its excellent hydraulic performance and outstanding corrosion and abrasion
resistance, and has become the preferred pump type for many demanding workstations.

LCF corrosion-resistant and wear-resistant centrifugal pump Performance and
advantages

1) The impeller channel is spacious and has superior hydraulic performance.

The front and rear cover plates of the impeller are equipped with back blades,
which can reduce medium leakage.

Different forms of impellers can be selected according to the characteristics of
the medium, and the interchangeability is good.

2) There are multiple sealing forms in the design, which can make reasonable
choices for different working conditions and user requirements.

3) The shaft adopts a rigid design, and the bearings use national standard roller
bearings and radial thrust bearings, which can withstand large radial forces and
ensure long-term operation of the transmission part.

4) The pump casing is sturdy and thick, with smooth inner walls and outstanding
corrosion and wear resistance, ensuring a long service life.

5) There is a large conical space between the impeller and the pump cover,
effectively preventing the possibility of solid media entering the shaft seal.

6) Equipped with an axial adjustment device, the performance of the pump can be
maximally restored by adjusting the gap between the impeller and the pump body in
case of certain abrasion and corrosion of the overcurrent components

Minimum Order: 1 sets
