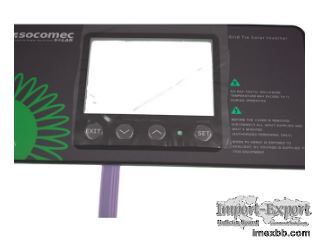

LED 1.5mm Thick Membrane Touch Control Panel Oil Proof Matte Printing

1.Lower Circuit Layer – This layer is a 0.1mm--0.25mm thickness thermostable
PET film printed with conductive silver ink and also dielectric oil. This layer
terminates as a flexible tail that serves as an interconnector to controller
PCBs or other IC.
2.Rear Adhesive – This adhesive layer bonds the entire membrane switch to the
product surface, housing, or to a rigid support panel. UNIGREAT can use the
proper adhesive type and thickness to bond your membrane switch to your
equipment.

3.Graphic Overlay – PET/PC is usually the material of choice due to its
fantastic chemical resistance and flex property . UNIGREAT can do digital
printing, screen-printing, or apply both methods to ensure you get the right
colors, textures and finish your design requirements.
4.Overlay Adhesive – This adhesive layer stick the graphic overlay to the top
circuit layer, and is usually an acrylic adhesive. The material is same with
the fourth layer. Only the thickness maybe different according to the actual
situation.


Item Project Details
1 Product name
Waterproof membrane switch

2 Drawing format CAD/ CorelDraw...
3 Material PET/PC/PVC
4 Cables Design
5 Life expectancy Flat: 500 million times
6 Life expectancy Tactile: 100 million times
7 Thickness 0.7-1.5mm
8 LED One only

Click to Enlarge
