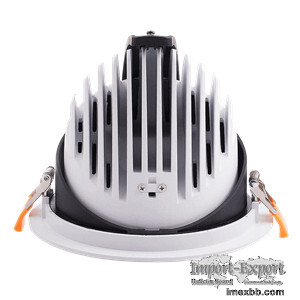

LED Downlight DTZ Series dimmable LED Downlight China

LED Downlight DTZ Series dimmable LED Downlight China high efficiency LED
Downlight
Model: JST-DTZ
Wattage: 10W-50W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 45°/90°
Diameter: 90mm-190mm
Cutout: 75mm-170mm
Description
DTZ Series are originally researched and developed by JST, pure aluminum
housing, anodized finish, use PC reflector, reflective rate>95％high grade
glass, transparent rate>93％, top quality CITIZEN COB, with
OSRAM/LIFUD/TRIDONIC exterior driver, dimmable, good heat sink, brilliant
quality, more than 50,000 hours life span.
Black LED Downlight Advantages
1. High Ra>90,high efficiency, high luminosisy, SDCM<3, make surroundings of
high-quality illumination
2. Glare-fee design, perfect light spot with precise cast.
3. Easy to installation.
Specification
Model Power CRI CCT PF Current Input Voltage Beam Angle
Dimension Cutout
JST-DTZ 10W >80/90 2700K-5000K >0.65 0.25A AC220-240V
15/24/36/60 D140*H115mm 125mm
JST-DTZ 15W >80/90 2700K-5000K >0.90 0.35A AC220-240V
15/24/36/60 D140*H115mm 125mm
JST-DTZ 25W >80/90 2700K-5000K >0.90 0.60A AC220-240V
15/24/36/60 D140*H115mm 125mm
JST-DTZ 30W >80/90 2700K-5000K >0.90 0.75A AC220-240V
15/24/36/60 D160*H130mm 145mm
JST-DTZ 35W >80/90 2700K-5000K >0.90 0.85A AC220-240V
15/24/36/60 D160*H130mm 145mm
JST-DTZ 45W >80/90 2700K-5000K >0.90 1.10A AC220-240V
15/24/36/60 D190*H160mm 170mm
JST-DTZ 50W >80/90 2700K-5000K >0.90 1.25A AC220-240V
15/24/36/60 D190*H160mm 170mm

Application
Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets
etc.

Our products such as customized LED downlight, LED track light and LED grille
downlight have various certificates, such as CE, ROHS, SAA, CB, TUV ect.
For more information on LED lighting, click here.
https://www.jarstar-tech.com/

Minimum Order: 100 pieces
