Marine Cast Bronze Valves

Marine Globe valves and angle valves are found wide applications generally in
flow regulation duties and also applicable to duties under high temperature
pressure.
PRODUCT DESCRIPTION

Globe(SDNR)/ Angle (SDNR) / Swing Check Valve / Lift check / Hose / Gate Valve
/ Cock

Cast Bronze Globe(SDNR) valve F7301, F7351, F7303, F7409

Cast Bronze Angle (SDNR) valve F7302, F7352, F7304, F7410

Cast Bronze Globe(SDNR) valve(union bonnet type)F7346, F7348

Cast Bronze Angle(SDNR) valve(union bonnet type)F7347, F7349

Cast bronze Rising Stem Gate Valve F7367, F7368

Cast bronze Swing/ Lift Check Valve F7371, F7356

Cast bronze Fuel Oil tank self-closing Drain valves F7398

Cast bronze Fuel Oil tank emergency shut-off valves F7399

Cast bronze flange cocks F7381

https://www.haiyingvalve.com/products/marine-cast- , bronze-valves.html

Marine Globe valves and angle valves are found wide applications generally in
flow regulation duties and also applicable to duties under high temperature
pressure. Globe valves are designed to be useful in linear portions of piping
and angle valves in bent portions.

Marine Gate valves are not suited for flow regulation duties, generally, they
are used either being fully opened or closed, having smaller resistance against
fluid and smaller space between flange faces than that of globe valves, HY Gate
Valves are suited for applications in piping in narrower spaces. Especially,
those of larger aperture contribute to economy, however, gate valves of inside
screw type are not suited for duties under high temperature and high pressure
according to their construction.

Check valves are designed to be installed in positions where counterflow must
be prevented. Their use varies in screw-down check valves, lift check valves
and swing check valves. screw-down check valves are used in positions where
only counterflow check is required and can be regrouped into globe valves and
angle valves.

Lift check valves are used in positions where only counterflow check is
required and again can be regrouped in globe valves and angle valves.

Swing check valves are used in positions where it is required that the valves
are opened and closed by small difference in pressure and that the resistance
against fluid is small when it passes through the valves. Swing check valves,
however, are not suited for duties under high temperature and high pressure
according to their construction.

Cocks are used in positions where quick opening and closing of passage or
switching of flow direction is required. Especially for switching flow
direction, threeway cocks are useful. cocks, however, are not suited for duties
under high temperature and high pressure according to their construction.



Application: SEWAGE TREATMENT, FIRE & BILGE & BALLAST, FRESH WATER, Sea Cooling
Water, Oil Pollution, FIRE & BILGE & BALLAST, Tank Sounding, GRAY WATER

-JIS 5K /10K /16K/20K/ DIN PN6 /PN10/PN16/PN25/PN40 ANSI 150#/300#

Certificate: ISO9001, ABS, BV, DNV, LR

Related Standard:

Shipbuilding –valves and cocks-General inspection requirement JISF7400.

ISO5208-industrial valves-Pressure testing for valves.

Shipbuilding-Application for valves and cocks JISF7300.

Minimum Order: 1 pieces

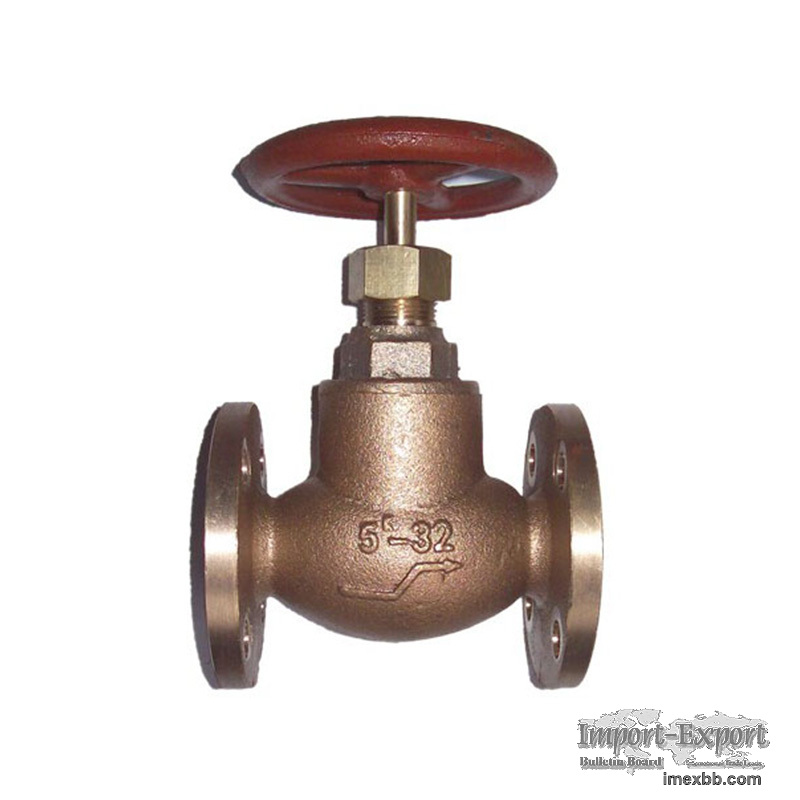

Marine Cast Bronze Valves
Enlarge Click to Enlarge
