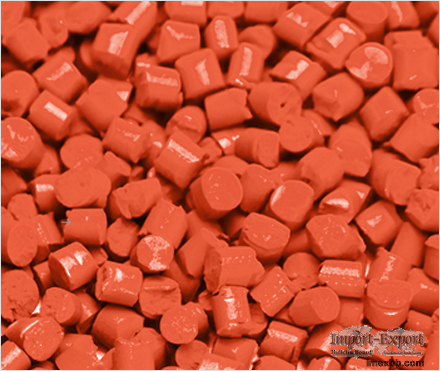

Medical Equipment Cable Jacket TPEs

ATP's TPE plastic thermoplastic elastomer series

1. Authoritative certification:

passed ISO10993 "bio-compatibility" test;

2. Safety and reliability:

Pass a series of comprehensive tests: alcohol resistance, microbial resistance,
acid and alkali resistance, hydrolysis resistance (85℃&85%RH，1000Hrs) test;

3. Gentle touch:

Compared with TPU cable sheath, TPEs cable sheath presents a softer touch;

4. High-cost performance ratio:

low density (≤0.95), high processing efficiency, the best solution for
discarded medical cable sheath.

Technical Data of Medical Equipment Cable Jacket TPEs
Technical Data Sheet Model
Material Properties Test Standard Test Condition Unit 2560F-
ESU-2514S
General Characteristics Material Category - - -
Appearance(Light/Semi-matte/Frosted) - - -
Extrusion/Injection - - -
Physical Characteristics Hardness ISO 48 15S Shore A 55
Proportion ISO 1183 - g/cm³ 0.939
Melt Index ISO 1133-1:2011 190℃/2.16kg g/10min 0.7
Brittle Temperature ISO 812 - ℃
Mechanical Properties Elongation ISO37:2017 200mm/min %
424
Tensile Strength ISO37:2017 200mm/min Mpa 5.24
Tearing Strength ISO34-1:2015 500mm/min KN/m
Hot Air Aging Elongation Retention Rate ISO37:2017 - %
Tensile Strength Retention Rate ISO37:2017 - %
Electrical Performance Volume Resistivity ASTM D257 - Ohm-cm
Permittivity ASTM D150 - -
Combustion Performance Vertical Burning Test UL 94 3.0/6.0mm -
Oxygen Index ASTM D2863 - %
Feature


As a professional polymer compound manufacturer, we provide tpe elastomer, atp
material, tpe plastic material, tpe cable jacket etc. For tpe plastic meaning
or more information, please feel free to contact us!

Minimum Order: 500 kilograms
