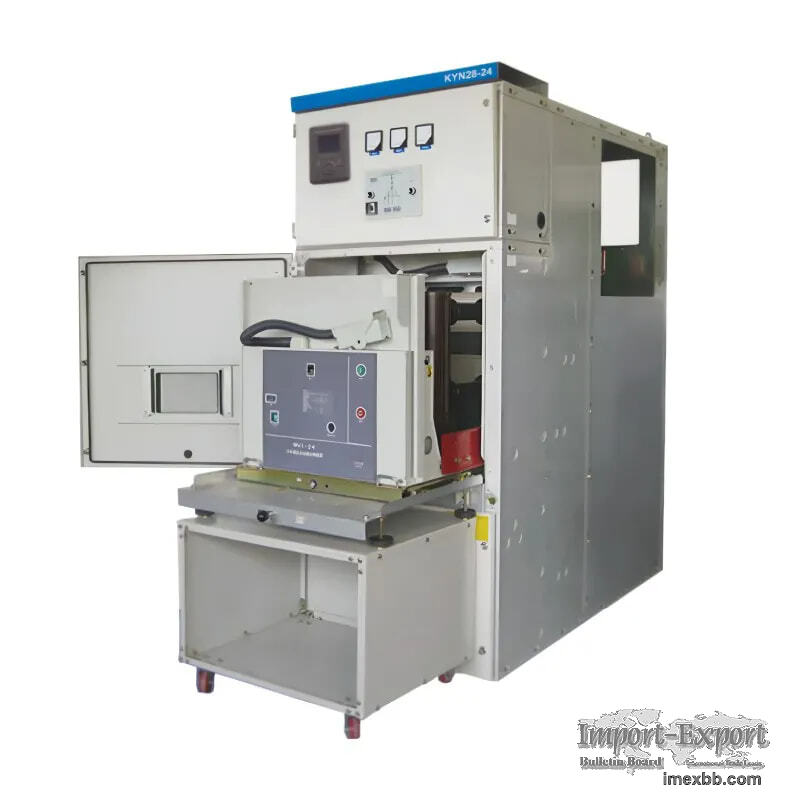

Medium Voltage Switchgear

Introduction
Medium Voltage Switchgear is a crucial part of electrical power systems used to
control, protect, and isolate electrical equipment operating between 1 kV and
36 kV. It ensures safe and reliable power distribution across industrial
plants, utilities, and commercial facilities. With advanced safety features and
automation options, medium voltage switchgear is essential for maintaining
stable and efficient energy systems.

What is Medium Voltage Switchgear?

Medium Voltage (MV) switchgear refers to assemblies of electrical components
designed to manage power distribution at medium voltage levels. It includes
circuit breakers, switches, relays, fuses, and protection devices enclosed
within metal or gas-insulated panels.

The primary functions of MV switchgear are to:

Control power flow within the network

Protect equipment from overloads and short circuits
