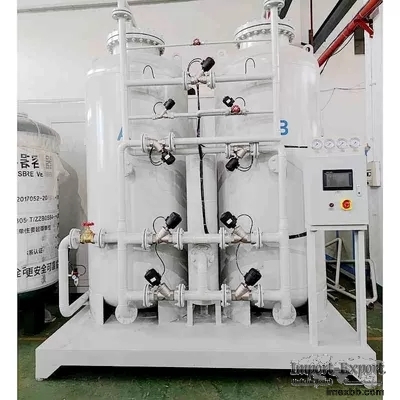

Membrane PSA Gas Generator Nitrogen Generators Unit 100Nm3/H, 99.9% Purity

Product Description
Description of 99.9% Purity 100Nm3/H PSA Nitrogen Generator Food,
metallurgy, chemical

industry applicable

We have been engaged in the assembly of PSA nitrogen generators and oxygen
generators in our factory for 15 years, providing approximately 400 sets of
PSA nitrogen generators and oxygen generators for domestic and international
customers each year, including production, and debugging.

In collaboration with Burkert Valves, we have customized our own double-
acting pneumatic valve. Through the design of top and middle pressure
equalization,and airflow orifice plates, we continuously optimize and reduce
the air consumption ratio of the equipment, thus achieving energy savings.
The energy consumption ratio of our equipment has reached the highest level
in China. And through our patented silencer, our device noise is controlled
to less than 55 db.

In terms of process flow, we have cutting, welding, assembly, filling of
molecular sieves, automatic rust removal, spraying, and complete procedures
and supporting equipment for commissioning.

In the supply chain aspect, we provide first-line brands such as Atlas
Copco, Ingersoll Rand, GDK, Liutech, Bolaite, Hanbell, and BK for air
compressors, and provide Boly, Atlas Copco, and Liutech refrigerated dryers,
as well as Anshan Jiapeng and Anqing Bailian boosters.

We can provide supporting equipment and accessories.

Currently, our company's products are aimed at end-users and distributors
worldwide. We provide customized remote systems, color customization,
display interface customization, and many other OEM services. And we also
provide ASME standard equipment and pressure tanks for USA and Australian
market.

For specific selection, please contact our customer manager. We hope to
become your trusted long-term partner.

Membrane PSA Gas Generator Nitrogen Generators Unit 100Nm3/H, 99.9% Purity 0

PN3100 PSA Nitrogen Plant Technical Specification
lot Item Description /Specification
1 Model/Place of Manufacture PN3100
2 Nitrogen making principle PSA Pressure swing adsorption PSA变
压吸附(开放式结构)
3 Application Operation place Indoor
Environment Ambient temperature Min -5℃/Max 50℃/ design
temperature37℃
Ambient humidity Min 40%RH Max90%RH
4 Capacity 100 Nm3/hr
5 Nitrogen Gas Purity ≥99.9 % Test at outlet of psa Nitrogen
6 Nitrogen Purity Sensor HT-TA261 1set
7 Nitrogen Flowmeter Japan SMC flowmeter 1 sets
8 Inlet compress air pressure 0.75 -0.99Mpa
9 Inlet Oil Content ≤0.001mg/m3
10 Residual dust ≤0.01um
11 Residual water ≤0.069mg/m3
12 Air inlet atmospheric dew point -15℃
13 Demand for clean compressed air 6.17 Nm3/min Recommend Air
compressor 45Kw (6.5m3/min 10Bar )or 37Kw (6.8m3/min 8Bar)
14 Inlet Diameter DN40
15 Outlet Diameter DN25
16 Maximum inlet temperature MAX 30 ℃
17 Allowable working pressure range Min7.5Kgf / cm2 Max9.9Kgf /
cm2
18 Carbon molecular sieve model/origin CMS-240
19 The tower body pipe 2 sets
20 Air and nitrogen buffer tank Piped storage tank
21 Instrument Tank, silencer PB Silencer ≤55dB(A) patent
number:ZL 2015 2 0545860.3
22 Solenoid valve brand/origin AirTAC 7 sets
23 Pneumatic valve brand/origin PB-Customized 11 Sets (two for
auto drain unqalified Gas)
24 Control System Control Power Supply 0.2kw/set 220V 50 HZ
PLC Mitsubishi core integrated screen /or Siemens S7-200 Smart
electrical box built-in 1 set
touch screen Mitsubishi core integrated screen/ MCGS
25 size LxWxH (mm) / Weight:(Kg) About:1800*1000*2300// 1850kg
26 Price 含税含运费交期20天　
