Metal Bond Micron Diamond

Metal Bond Micron Diamond synthetic Micron Diamond monocrystalline
Metal Diamond high finishing Micron Diamond

Daoya diamond powder DESCRIPTION

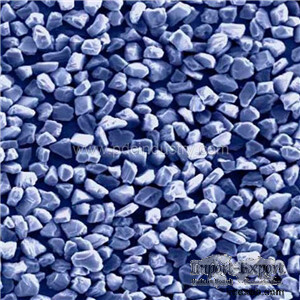

Introduction of Metal Bond Micron Diamond
A synthetic material, grown slowly compared to resin bond diamond, Our's metal
bond micron diamond features monocrystalline structures with high toughness.
The typical blocky crystals are suitable for resin, metal and electroplated
bond systems in applications such as grinding ceramics, cemented carbides and
glasses. They are also extensively used in polishing and other surface
conditioning applications.
Processed using state-of-the-art grading equipment, metal bond micron diamond
provides well-controlled particle size distribution and surface cleanliness in
a wide range of challenging applications.
Micron Diamond Powder: MW19
Irregular shape, low toughness, uniform Particle Size Distribution.
The best choice when cost is the main concern in the process.
For Lapping, Grinding the hard and fragile material
Micron Diamond Powder: MW30
Semi-blocky shape, medium toughness, uniform Particle Size Distribution
Good combination of high grinding performance and high finishing.
For Lapping, Grinding the hard and Brittle material
Micron Diamond Powder: MW40
Blocky shape, high toughness, uniform Particle Size Distribution, clean
More wear-resistant than MW30.
For Lapping, Grinding and Fishing the hard and Brittleness material
Micron Diamond Powder: MW50
Very blocky shape, high toughness, Narrow Particle Size Distribution, very
clean
Very long using life and very high finishing.
For Optical objects, magnet heard, HDD

Available sizes:
MW19 MW30 MW40 MW50
0-0.1 √ √
0-0.25 √ √ √ √
0-0.5 √ √ √ √
0-1 √ √ √ √
0.5-1 √ √ √ √
0.5-1.5 √ √ √ √
0-2 √ √ √ √
1-2 √ √ √ √
1-3 √ √ √ √
2-4 √ √ √ √
2-5 √ √ √ √
3-6 √ √ √ √
4-6 √ √ √ √
4-8 √ √ √ √
5-10 √ √ √ √
6-12 √ √ √ √
8-12 √ √ √ √
8-16 √ √ √ √
10-15 √ √ √ √
10-20 √ √ √ √
12-22 √ √ √ √
20-30 √ √ √ √
20-40 √ √ √ √
22-36 √ √ √ √
30-40 √ √ √ √
36-54 √ √ √ √
30-60 √ √ √ √
40-50 √ √ √ √
40-60 √ √ √ √
54-80 √ √ √ √

Other sizes are also available according to customer requirement.

We are a technology-based enterprise integrating technology development,
production and service of diamond polishing pads. We also provide industrial
diamond for sale.
