Resin Bond Mesh Diamond industrial diamond for sale

Resin Bond Mesh Diamond industrial diamond for sale Yellow Green Resin
Bond Mesh Diamond

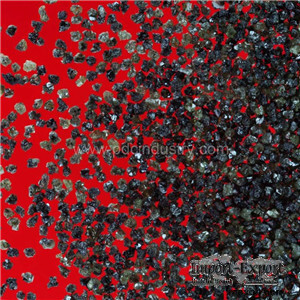

Introduction of Resin Bond Mesh Diamond
Our's resin bond mesh diamond is a synthetic material with a friable crystal
structure for use in vitrified and resin bond systems. The crystals are
irregular, elongated and rough-edged, and are suitable for grinding tungsten
carbide, ceramics and glasses.
The friability or breakdown of the diamond is a function of its polycrystalline
structure and metallic inclusions within the grains. Grains are microfractured
during grinding and new edges formed for efficient, free-cutting action.
Resin bond mesh diamond is typically 40µm and larger in particle size and is
available in standard electroless nickel (Ni) coatings of 30% and 56% by
weight, and a copper (Cu) coating of 50% by weight.
Resin Bond Mesh Diamond: R15
Rough and very irregular, Highest Friable, Yellow Green Color
Best self-sharpening performance and high thermal stability, suitable for creep
grinding, the good choice for high precision grinding where premium surface
finish and form remaining are demanded.
Available sizes:60/80 through 400/500
Resin Bond Mesh Diamond: R23
Irregular, medium-high Friable, Yellow Green Color.
Good combination of high free cutting and high surface finish. The first choice
for the products with critical cost.
Available sizes:60/80 through 400/500
Resin Bond Mesh Diamond: R21
Irregular, low Friable, light Green Color
Similar to R23
Available sizes:60/80 through 400/500
Resin Bond Mesh Diamond: B100
Semi-blocky, very low friability, Black
Premium performance in thermal stability
For Vit bond system with good profile retention and sharpness
Available sizes:
ANSI 60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325
325/400 400/500
FEPA D252 D181 D151 D126 D107 D91 D76 D64 D54
D46 D32
R22 * * * * * * * * *
* *
R11 * * * * * * * * *
* *
R15 * * * * * * * * *
* *
R21 * * * * * * * *
* *

We are a technology-based enterprise integrating technology development,
production and service of diamond polishing pads. We also provide industrial
diamond for sale.
