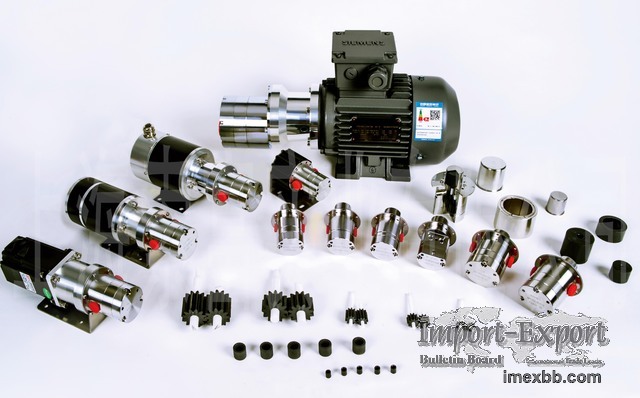

Micro Magnetic Gear Pump

Features of Miniature Magnetic Gear Pump
? Precision Flow & High Pressure: 0.1-26 ml/rev flow (±0.1% accuracy); Handles
20Bar differential pressure and withstands 600Bar pressure with PEEK material
and ceramic shafts.
? Extreme Endurance: -120°C to 150°C; 20,000+ hours lifespan; stable, pulse-
free flow.
??Operation: 1-4000 rpm; runs dry self-priming; -0.85Bar inlet vacuum.
Core Advantages of Miniature Magnetic Gear Pump
??Proprietary Tooth Profile: For wear resistance and near-pure rolling mesh.
??Optimized Cavity: High-volumetric efficiency, reversible.
??Pulsation-Free Output: Smooth and stable conveying.
??Injection-Molded Gears: Integrity preserved without post-machining.
??Ceramic Shafts: High rigidity and wear resistance for demanding conditions.
??Dry-Running & Self-Priming: gas-liquid two-phase, vacuum intake applications.
??Flexible Motor Options: Full range from AC to DC, including explosion-proof
and integrated drives.

Micro magnetic gear pumps are designed for precise, stable, and leak-free fluid
handling across a wide range of functional applications.With a sealless
magnetic drive design, they provide pulse-free flow, accurate control, and
reliable operation in both low- and high-viscosity media. These pumps are
widely used for lubrication, metering, sampling, circulation, cooling,
cleaning, atomization, hydraulic transfer, and pressurization in industrial and
OEM systems.
Functional Capabilities of Micro Magnetic Gear Pumps

Metering Gear Pump for Precision Fluid Transfer

Micro Gear Pump for Fluid Pressurization

Micro Gear Pump for Precision Atomization

Micro Magnetic Gear Pump for Circulation Systems

Micro Gear Pump for Precision Cleaning

Micro Gear Circulation Pump for Cooling Media

Micro Gear Pump for Accurate Fluid Sampling

Gear Lube Pump for Lubricant Delivery

Micro Gear Pump for Hydraulic Power Transmission

Applications of Micro Magnetic Gear Pumps
Micro gear pumps are widely applied in diverse industrial and OEM application
scenarios requiring precise, stable, and reliable fluid handling.With a
sealless magnetic drive design, they deliver leak-free, pulse-free performance
and consistent flow control across low- and high-viscosity media. These pumps
are commonly used in new energy, refrigeration and liquid cooling, medical and
pharmaceutical equipment, semiconductor processes, agriculture, fire
protection, and general industrial systems to support metering, circulation,
cooling, and fluid transfer functions.

Micro Gear Pump Solutions for Medical And Pharmaceutical Fluid Control
Diagnosis & Treatment / Production Line & Laboratory Equipment20 March 2025

Micro Gear Pump Solutions for Industrial Fluid Control
SCR / DPF/ Filling (Pharma&Industrial&Food) / Purification Systems / Dispensing
& Coating / Online Sampling / Steam Generators / Pilot & Small-Scale Test Unit
/ Chemical Metering / Dosing / Test Benches / Rigs / Online Transformer Oil
Analysis / Gas Foil Bearing Systems20 March 2025

Micro Magnetic Gear Pump for Fire Protection and Energy Storage Systems
?Special Fire Protection / New Energy Fire Protection20 March 2025

Micro Magnetic Gear Pumps for Agricultural Fluid Handling
Irrigation System20 March 2025

Micro Gear Pump Solutions for Semiconductor Fluid Control
Chip Low Temperature Test Stand / Lithography machine system cooling20 March
2025

Micro Gear Pump Solutions for Refrigeration And Liquid Cooling
Air Conditioning System / Data Center Liquid Cooling / Industrial Cooling &
Temperature Control20 March 2025

Micro Gear Pump Solutions for New Energy Fluid Control
Hydrogen Energy Systems / Battery Technology / Energy Recovery20 March 2025

Micro Magnetic Gear Pumps for Aerospace And Advanced Research
Fuel Transfer / UAVs / Cooling / Compact Hydraulic Systems20 March 2025

Micro Gear Pump Solutions for Cleaning And Disinfection Fluid Control
Mobile Disinfection System / IVD / Microplate Washer / Cleaning and Extraction
Equipment20 March 2025

Working principle: Magnetic structure, non-leakage, double gear
Pump body material: Stainless steel 304 or 316
Gear material: one SS material, one PEEK material
Max. medium temperature: 140℃
Flow rate: 3 - 15L/min
Discharge pressure: 0.25Mpa
Caliber: 8 - 20mm
Caliber connection type: Hose
Motor power: 120 - 550W
Motor specification: 110/115/120v, single phase
220/240/380/400/415/440v, 3phase, 50/60Hz, etc
DC 24V
Motor type: Variable frequency, EX motor
Main application Chemical, chemical oil, oil, water, etc
Model Inlet/Outlet
(mm) Capacity
(L/min) Pressure
(MPa) Speed
(r/min) Power
(KW) Motor
8CQCB-3 8 3 0.25 2800 0.12
DC24 AC220V/380V

1phase/3phase
50Hz/60Hz
Fixed speed/Adjustable speed

10CQCB-5 10 5 0.25 2800 0.18
15CQCB-10 15 10 0.25 2800 0.37
20CQCB-15 20 15 0.25 2800 0.55


What Can We Customize for You?


Performance Parameters — Flow, Pressure & Temperature
Flow rate from 0.1 ml/rev to 65 L/min. Differential pressure up to 40 bar, pump
body pressure rating up to 300 bar. Temperature range -120°C to 150°C.

Materials & Interface — Media Compatibility & System Fit
Pump body, gears, bearings, shafts, seals — material selection based on your
media's corrosiveness, viscosity, and temp. Port threads (NPT, G, ZG) and sizes
customized to your piping.

Motor & Integration — Power, Control & Mounting
BLDC, Servo or AC — we match or integrate your preferred motor. Mounting
brackets, shaft extensions, and flanges tailored to your existing system.

Minimum Order: 1 sets
