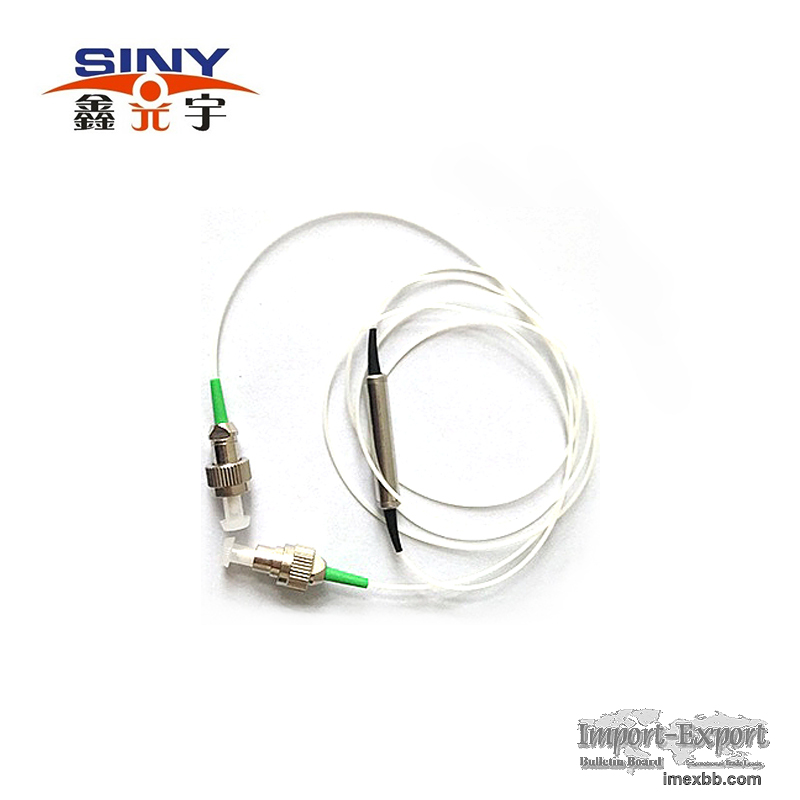

Mini Dual Stage In Line Optical Isolator for EDFA

SINY OPTIC-COM CO.,LTD was founded in 2008, is ISO9001 and ISO14000 Optical
Components manufacturer in China.


In Line Optical Isolator Features:
Low Insertion Loss
High Isolation
Telcordia compliant
RoHS Compliant

In Line Optical Isolator Application
Fiber Optic Components
EDFA


In Line Optical Isolator Specifications
Center Wavlength: 1310/1550nm or Customized
Dual Stage
Min Isolation:46dB
Type Insertion Loss:0.6dB
Max Insertion Loss:0.8dB
Min Return Loss:55/55 dB
Max PDL:0.1dB
Max PMD:0.05ps

Opterating Temperature Range:From -30 to +70
Max. Power Handling:500mW
Storage Temperature Range:From -40 to +85
Package Dimension(L*φ):26*38mm

Minimum Order: 50 pieces
