Mini Oxygen Pressure Gauge

1 inch oxygen pressure gauge which is used for oxygen system.

Specifications:
Specifications of Mini Oxygen Pressure Gauge

Dial 1.25'' or 1.5'' white aluminum with black markings
Case 304 SS
Lens Plexiglass
Spiral Tube phosphor bronze or Stainless steel316L
Connection 1/8'' NPT standard, back
pointer 3000 psi and below: Brass
Over-Pressure Limit 10% of full scale value
Working Pressure 10% of full scale value
Ambient -40°F to 150°F (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP65

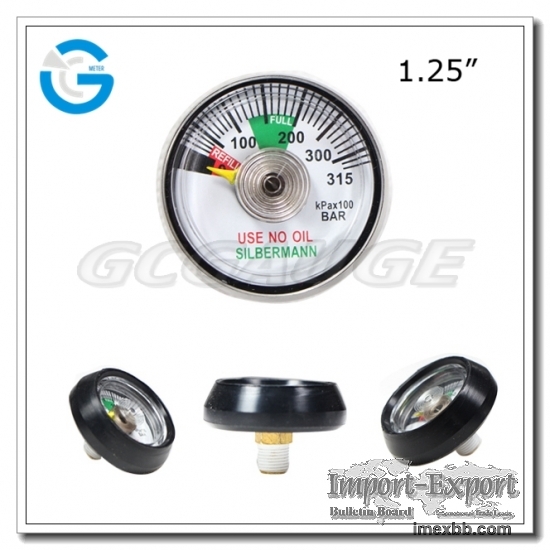

Product Pictures:

Dimension:
Dimension of Mini Oxygen Pressure Gauge

GC gauge is a professional pressure gauge manufacturers, we provide o2 pressure
gauge, mini high pressure gauge and etc. Want to know more? Contact us now.

Minimum Order: 1 sets
