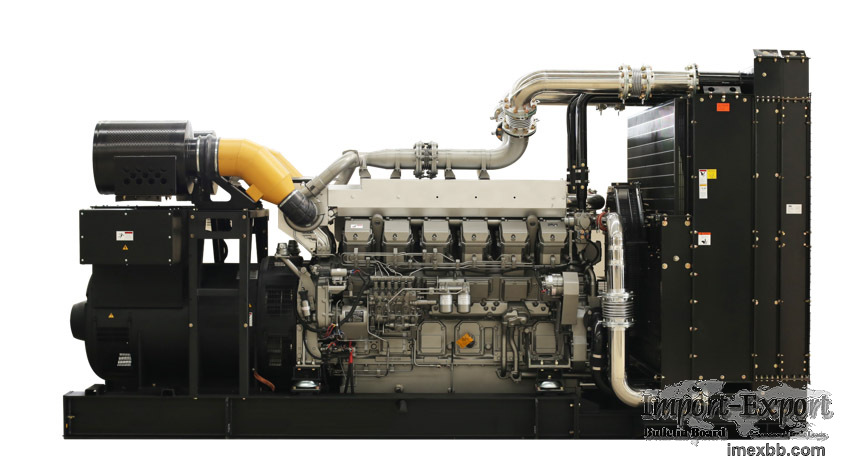

Mitsubishi 1250kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-SM1375
Prime Power: 1250 kVA
Standby Power: 1375 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 4900×2200×2350 mm
Weight: 9800 kg

Engine Specification
Manufacturer / Model Mitsubishi S12R-PTA-C
Air intake system Turbo, Water charge Air Cooling
Fuel system Mitsubishi PS6
Cylinder arrangement 12 in "V"
Displacement 49.03L
Bore and stroke 170×180（mm）
Compression ratio 14.1
Rated speed 1500rpm
Max. Standby power at rated speed 1190KW/1595HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 197 g/kWh 252 L/h

Alternator Specification (Stamford S6L1D-G4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
