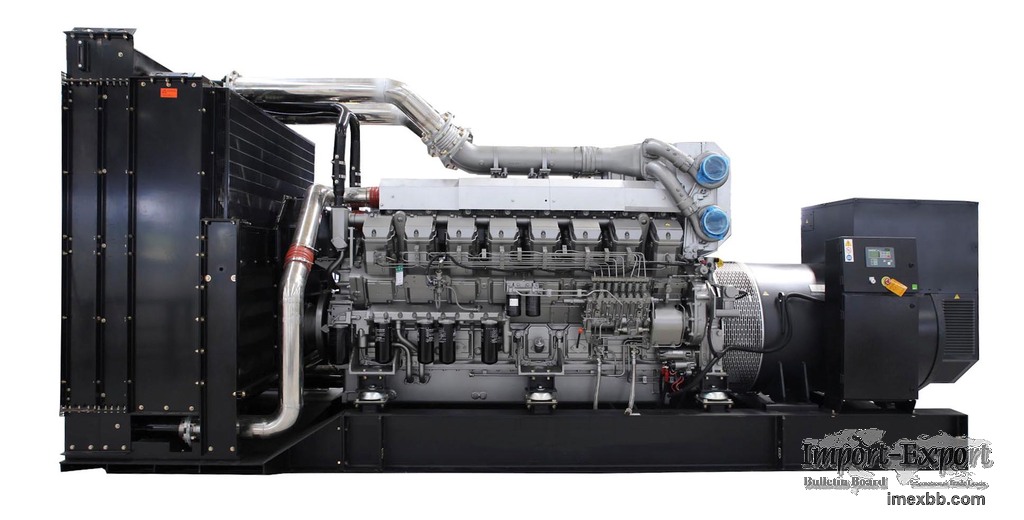

Mitsubishi 2250kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-SM2500
Prime Power: 2250 kVA
Standby Power: 2500 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 5800×2210×2600 mm
Weight: 16800 kg

Engine Specification
Manufacturer / Model Mitsubishi S16R2-PTAW-C
Air intake system Turbo, Water/Air Cooling
Fuel system Bosch PS8
Cylinder arrangement 16 in "V"
Displacement 79.9L
Bore and stroke 170×220（mm）
Compression ratio 14
Rated speed 1500rpm
Max. Standby power at rated speed 2167KW/2905HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 209g/kWh 476 L/h

Alternator Specification (Stamford S7L1D-H41)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
