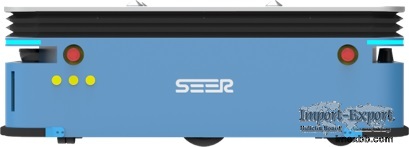

Mobile Control Robot SJV-W1000

SRC-powered Mobile Control Robot SJV-W1000, equipped with SRC series core
controller, has an ultra-low chassis, so that it can drill into the shelf for
jacking and transfer with a limit load of 1000kg. Repeated localization
accuracy reaches within ±5 mm, ±0.5°. Built-in industrial-grade WiFi client
device makes network data interaction more stable and also supports WiFi
roaming. Trackless laser SLAM navigation and multi-sensors such as 3D obstacle
avoidance cameras ensure safety protection. The SRC-powered autonomous
industrial robots can realize the flexible transportation of goods between
designated sites, such as e-commerce sorting, material transfer and other
links, liberating the labour and realizing unmanned transportation. As one of
the professional autonomous mobile robots manufacturers, SEER could provide you
various types of automated guided vehicles and autonomous mobile robots of high
qualiy.

Descriptions of Mobile Control Robot SJV-W1000
Large load
1000kg large load, to meet most industrial handling scenarios

Stable Navigation
Built-in industrial-grade WiFi client equipment makes network data interaction
more stable.

Shelf Identification
The location and posture of the pallet are accurately and autonomously
identified through the pallet identification sensor. Efficient and precise
forking of cargoes can be realized even if the pallet is moved.

Autonomous Charging
Automatic charging is supported, requiring no staff intervention during the
charging operation.

Specifications of Mobile Control Robot SJV-W1000
Basic parameters
Navigation method Laser SLAM
Drive mode Two-wheel differential
Shell color Blue / Customized color
L*W*H 1224*730*420mm
Rotation diameter 1350mm
Weight (with battery) 250kg
Load capacity 1000kg
Chassis ground clearance 25mm
Jacking platform dimensions 1200*700mm
Maximum jacking height 60±2mm
jacking time 8±0.5s
Laser scanning height 267mm
Network Ethernet / Wi-Fi 802.11 a/b/g/n/ac
Ambient temperature and humidity range TEMP: 0-50℃ / RH: 10-90%, no
compression, no condensation
IP rating[1] IP20
Passability (slope/step/gap)[2] ≤5%/5mm/30mm
Performance parameters
Minimum passable width 850mm
Navigation position accuracy[3] ±5mm
Navigation angle accuracy[3] ±0.5°
Navigation speed ≤ 1.6m/s
Map area (single frame) ≤ 400000m²
Battery specifications 48/42 (Lithium Iron Phosphate)V/Ah
Battery parameters
Comprehensive battery life 8h
Charging time (10-80%) ≤1.5h
Charging method Manual/Automatic
Battery cycle number > 2000
Lidar number 2（SICK nanoScan3 / P+F R2000-HD + OLEI LR-1BS2）
Configurations
Number of low-position obstacle avoidance photoelectric ×
Cargo detection ×
E-stop button √
Speaker √
Atmosphere light √
Bumper strip √
Features
Basic functions[4] √
Wi-Fi roaming √
Automatic charging[5] √
Shelf recognition √
Spin[6] ×
Precise location with QR code[7] 〇
QR code navigation[8] 〇
Laser reflector navigation 〇
Certifications
EMC/ESD √
UN38.3 √
RoHS √
REACH √

Figures: √ Supported X Not supported 〇 Optional
The road surface should be smooth, clean and free of obvious ups and downs.
Slope 5% = arctan (0.05) ≈ 2.8°. The robot must not stop or turn at the
ramps, steps, or gaps, but can pass quickly perpendicular to them.
The localization accuracy is affected by environment, ground, etc. Please refer
to the localization accuracy interpretation in the final technical agreement.
Basic functions include but are not limited to map editing, model editing,
localization module, navigation module and API interface.
Need to be used with a dedicated automatic charging pile.
SJV-W1000 is designed for indoor transportation only and is not recommended for
outdoor use.
