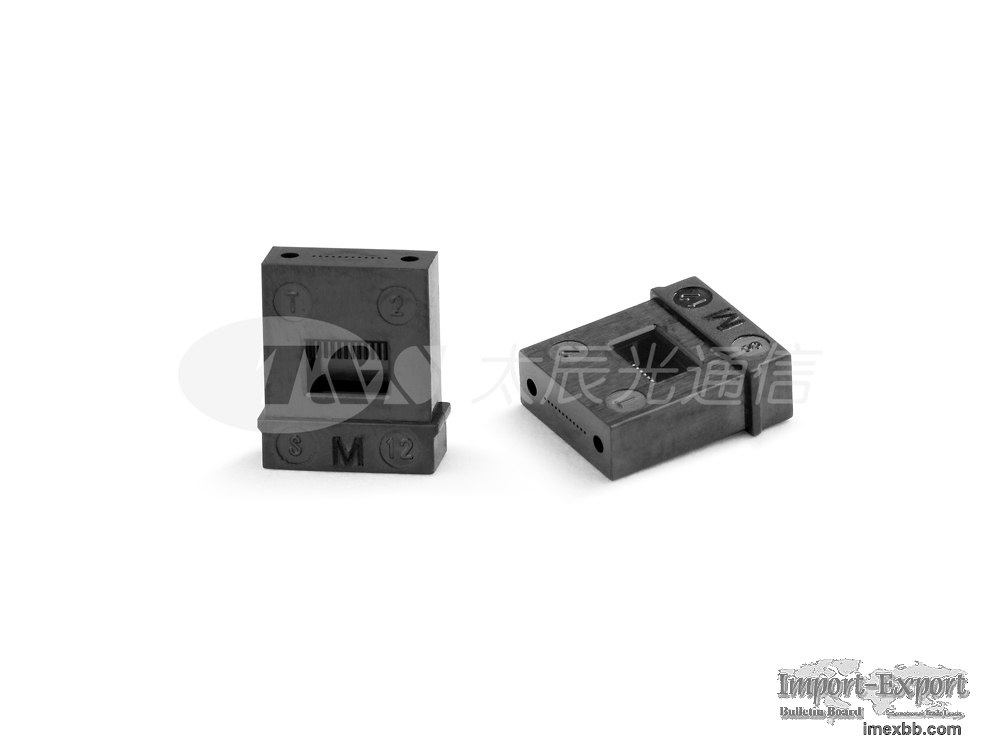

MT Ferrule

The MT ferrule is a multi-fiber, plastic ferrule with a square end-face of
6.4x2.5 mm and fiber pitch 0.25mm, widely applied in MPO connectors and AOC
cables. 12 and 24-fiber MT ferrules are the most commonly used types.

Features of MT Ferrule

MT ferrules manufactured by high precision mold technology meet
international standards such as IEC 61754-3-31, GR-135 etc.

Specification of MT Ferrule
Ferrule Type Fiber Hole Diameter (mm) Guide Pin Hole Diameter (mm)
Insertion Loss（dB）
12-Fiber MM Standard 0.1255+0.002/-0 0.7±0.001 Typical=0.25
max≤0.5
MM Low Loss 0.1255+0.002/-0 0.7+0/-0.001 Typical=0.12
max≤0.35
SM Standard 0.1250+0.001/-0 0.7+0/-0.001 Typical=0.25
max≤0.7
SM Low Loss 0.1250+0.0007/-0 0.6990+0.0006/-0
Typical=0.12 max≤0.35
24-Fiber MM Standard 0.1255+0.002/-0 0.7±0.001 Typical=0.25
max≤0.5
MM Low Loss 0.1255+0.002/-0 0.7+0/-0.001 Typical=0.12
max≤0.35
SM Standard 0.1250+0.001/-0 0.7+0/-0.001 Typical=0.25
max≤0.7
SM Low Loss 0.1250+0.0007/-0 0.6990+0.0006/-0
Typical=0.12 max≤0.35

T&S Communications is one of professional fiber optic accessories suppliers.
We provide WDMs, Fiber Optic Component and so on. Want to know more? Please
contact us.
