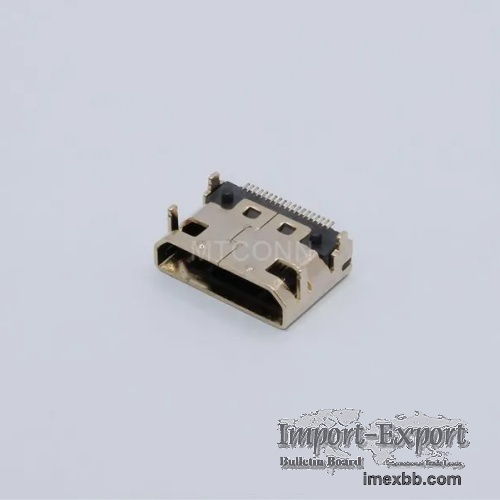

MTHD83-919G2B-06A73 Mini HD Female Connector

Compared to standard HD interfaces, the Mini HD interface is significantly
smaller in size. The width of the Mini HD female socket is approximately
10.5mm, with a height of about 2.5mm, whereas standard HD interfaces typically
measure around 15mm in width and 5mm in height. This compact design makes it
easier to integrate into portable devices.
High-Definition connectors Features
Despite its smaller size, the Mini HD maintains the same technical
specifications as standard HD interfaces. It employs fully digital transmission
using TMDS (Transition Minimized Differential Signaling) technology, enabling
the complete transmission of high-definition video and audio signals. It
supports multi-channel digital audio, 3D image transmission, high-speed data
transfer, and other functions, allowing seamless connectivity with standard HD
devices.
19-pin configuration.
90° SMT soldering.
