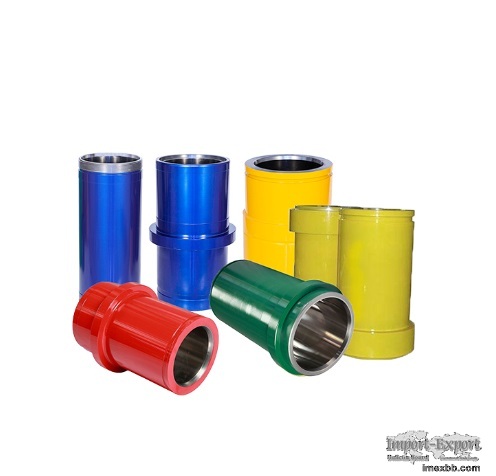

Mud Pump Cylinder Liner F800/F1000/F1300/F1600/F-2200hl

Mud Pump Cylinder Liner F800/F1000/F1300/F1600/F-2200hl
Product Description
Fluid End: liner, piston rubber, valve body, valve seats, valve rubber, liner
seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly,
valve cover, cylinder head, flange head, cylinder flange, cylinder cover,
inhalation capsules, etc.
Power End: extension rod, crosshead, crosshead pin, cross pin baffle, upper and
lower guide plate, packing boxes, seal ring, oil seal lips
Dampener: Dampener diaphragm, pressure gauges, fittings, tees, angle type
valve, relief valve, exhaust valve.
Other Accessories: JA-3 valve assembly, the small piston, small rod, cushion,
2S gear pumps, 32PL spray pump.
Drilling Mud Pump Parts
BOMCO Series: F500/F800/F1000/F1300/F1600/F1600HL/F2200HL.
HH Series: HHF500/HHF800/HHF1000/HHF1300/HHF1600/HHF2200
M , ud pump Cylinder Liner Specification
Bomco/Emsco F-1300 FB-1300 F-1600 FB-1600 F1600HL F2200HL
National 7P50 8P80 9P100 10P130 12P160 14P220
Gardner Denver PZ7 PZ8/9 PZ10/11 FK-FXK FY-FXX FG-FXG
Oilwell A-850-PT A-1100-PT A-1400-PT A-1700-PT
Russian UNBT-950 UNB-600 8T-650 UNBT1180L 3PN1600
Ideco T-500 T-800 T-1000 T-1300 T-1600
Wirth TPK1000 TPK1600 TPK2000

LS National 3NB-500C 3NB1000C 3NB1300C 3NB1600 3NB800
3NB1300A
Drillmec 9T1000 12T1600
