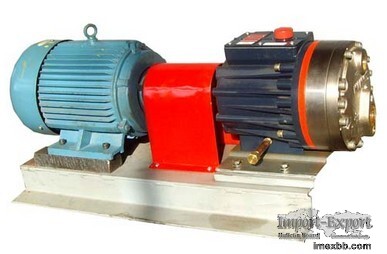

Multi-Plunger Diaphragm Pump Wanner Hydra-Cell pump

Product Description
Material Table
Part No. NameMaterial
1Pump CoverCast Iron FC250Stainless SteelCopper Plastic Alloy
2Valve Plate Cast Iron FC250Stainless SteelCopper Plastic Alloy
3Valve Disc Stainless Steel/SUS316L
4Valve seat Stainless Steel/SUS316L
5Diaphragm Fluorinated Rubber or Four Fluorine
6Spring SWP
7Plunger Barrel Alloy steel
8Plunger Alloy steel
9Plunger Pushing Head Alloy steel
10Shaft 40Cr

Features
1\Corrosion resistance and wear resistance
The body and parts of pump room are made of special materials with high
corrosion resistance and wear resistance.
2\Easy to maintain with low cost
It is possible to change diaphragm and valve without opening the pump body to
save time.
3\High pressure and high efficiency
In the oil room full of lubricant, motor turning force is effectively converted
to energy pressure, the efficiency can be high to 85% from low pressure to high
pressure ( 0-150kgf/ cm2), reduce power consumption.
4\Low noise and low ripple
The multi-plunger structure brings smooth running, additionally, oil pressure
drive diaphragm can control the pulse and maintain low noise.
5\Easy to operate
Since no seal part, shaft sealing fault can be avoided and self suction without
water exhale is possible. Additionally, positive and opposite spin of pump
shaft both can ensure normal liquid delivery.

Purposes
To deliver slurry containing fine particles, such as dye slurry, paint slurry,
etc; To match high pressure spray granulation equipment, etc.
Reverse osmosis membrane pressurizes water delivery equipment and matches valve
pressure test equipment of sea water desalinating unit, ultra pure water
preparation equipment, etc.
To convey sludge to pressure filter, inhale and convey sludge to gas explosion
groove.
To convey high pressure cooling liquid of deep hole drilling machine and
machining center for deep hole processing or ceramic grinding.

The cleaning of precision machining components, printed circuit board and post
processing of burr.
The swill of food factory conveyor belt or machine; High-pressure cleaning of
ships or vehicles.
To convey high viscosity liquid, such as glue, adhesives, jam, wheat paste,
cream, etc.

Selection Table
TypePressure(MPa)Flow(m3/h)Rotating speed(r/min)
H2S-300-100-0.40-600
H4S-300-10 , 0-0.80-600
H2S-500-100-1.30-550
H4S-500-100- , 2.60-550
H2S-750-100-3.20-500
H4S-750-100-6. , 40-500
H2S-1000-100-8.50-450
H4S-1000-100-17 , 0-450
H2S-1250-100-140-400
H4S-1250-100-280- , 400
H2S-1600-100-310-400
H4S-1600-100-620-40 , 0
H2S-2000-100-530-350
H4S-2000-100-1060-350

Minimum Order: 1 sets
