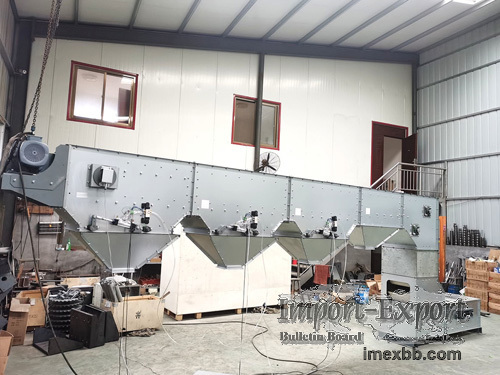

Multi-point discharge elevator

The multi-point discharge pendulum bucket elevator conveyor is a vertical and
horizontal bulk material handling system that combines standard pendulum bucket
elevator lifting with multiple independently controlled discharge outlets along
the upper horizontal run — allowing a single machine to lift material from one
inlet at floor level and deliver it to 2, 3, 4, 5, 6, or up to 7 downstream
positions such as storage silos, filling machine hoppers, multi-head weighers,
batch mixers, or packaging stations, without the need for separate conveyors
between each downstream point.
product superiority
1. Multi-functional device with revolutionary spatial capabilities
· Multi-device replacement: A single device can replace the complex system of
"one hoist + multiple horizontal conveyors + several distributors",
significantly reducing equipment investment and factory space requirements.
· Three-dimensional layout: Along the main tower of the hoist, unloading
ports can be installed at multiple different heights (typically 2-8 points) to
directly connect with production lines or silos on each floor.
· Simplified process flow: Materials are lifted into position in a single
operation and precisely distributed, reducing intermediate transfer steps and
fundamentally minimizing crushing risks.
