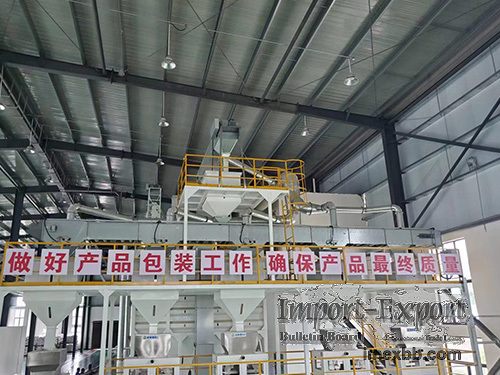

Multi-point feeding elevator

The multi-point feeding pendulum bucket elevator conveyor is a bulk material
handling system designed to receive material simultaneously from two or more
upstream sources — multiple processing machines, multiple conveyor outputs, or
multiple floor-level collection points — and consolidate that material into
one continuously running bucket chain that lifts it vertically and delivers it
to a single discharge point or a small number of downstream positions.
The Multi-point feeding elevator mainly consists of a drive system, conveying
chain, hopper, machine base, and feed and discharge ports.The multi-point
feeding elevator uses the same pivoted bucket mechanism as the standard
pendulum bucket elevator family: each bucket is suspended from the chain by
pivot pins, remaining horizontal throughout all travel — vertical, horizontal,
and through corner transitions. The multi-point feeding function is implemented
at the lower horizontal section, where multiple inlet gates are positioned at
intervals along the run.
