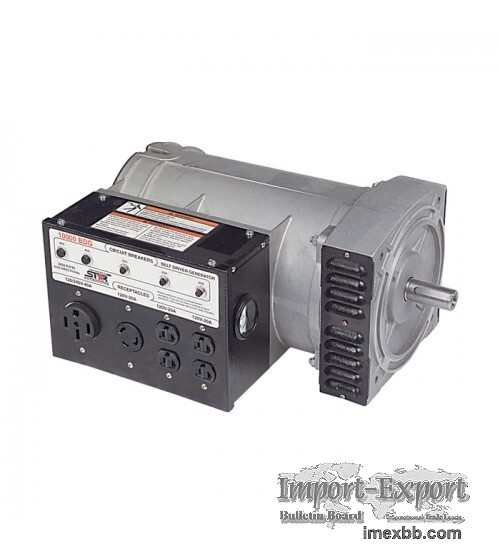

NorthStar Belt Driven Generator Head - 10,000 Surge Watts, 9600 Rated Watts

Compact, brushless NorthStar® generator has low 5% or less total harmonic distortion — safe for computers and TVs! Takes an 18+ HP engine for rated output: 10,000 surge Watts and 9600 continuous Watts. Generates 120 and 240 Volt power simultaneously. Input shaft turns clockwise and counterclockwise. Voltmeter. For horizontal application only.
What's Included

(1) Generator



Features + Benefits

Four 20 Amp 120V receptacles
One 30 Amp 120V locking plug receptacle
One 50 Amp 120/240V straight blade receptacle
Uses NEMA 5-20R, NEMA L5-30R and NEMA L14-50R plugs
80 Amps @ 120 Volts, 40 Amps @ 240 Volts
100% Copper windings
Brushless design, less than 5% Total Harmonic Distortion
Bi-directional
Thermal overload protection
Conveniently located control panel
Push button circuit breakers
Plugs sold separately

Key Specs
Item# 165928
Brand NorthStar
Manufacturer's Warranty 12 months parts / 12 months labor
Ship Weight 130.0 lbs
Required HP 18 (3480–3780 RPM)
Shaft Diameter (in.) 28 mm
Rated Watts 9,600
Surge Watts 10,000
Run Time Continuous
Receptacles (qty.) 6
Phase (1) 4 wire
Dimensions L x W x H (in.) 19 1/2 x 14 1/4 x 9
