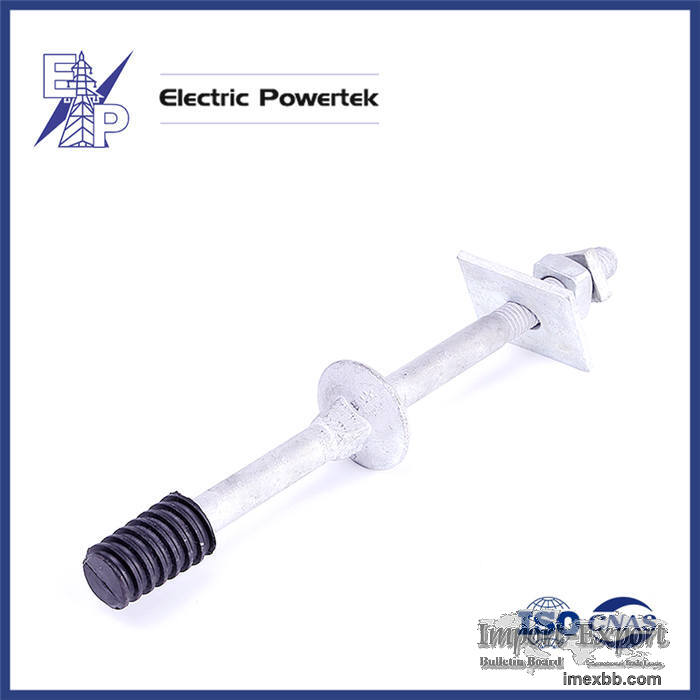

Nylon Head Hot Dip Galvanized Spindle For Pin Insulator

Insulator Crossarm Pins Forged from one piece steel. The base distributes load
and provides a firm seat on the cross arm. Each pin is shipped with assembled
hardware. All components are Hot dip galvanized to meet ASTM A153
specification.
The Crossarm pins are mainly used in transmission lines. It is used to connect
crossarms, thereby joining the crossarms. By joining crossarms together, they
are made stronger and more resistant to vibration.They are attached in cross
arms of overhead transmission lines for supporting and connecting the crossarms
by means other than Welding. They join two crossarms or a cross arm with an
insulator mounted on it. It is also put into one crossarm for joining cross
arms together.
The cross arm pins have three parts – the crossarm pin base, a crossarm pin
body, and the crossarm pinhead. The cross-arm pin base is fitted in an opening
of a cross arm.The cross-arm pin body connects the cross arm with another cross
arm or a crossarm insulator. The crossarm pinhead is placed on the top end of
the cross-arm pin body and holds it into position so that it cannot move
outwards.
Short Shank Type for Steel Crossarms
Part No. Head Material A B C D Weight
Inch Inch Inch Inch Kg/Pcs
C030410 Lead 7 1 5/8 5/8 1 0.955
C030420 Lead 8 1 5/8 3/4 1 3/8 1.727
