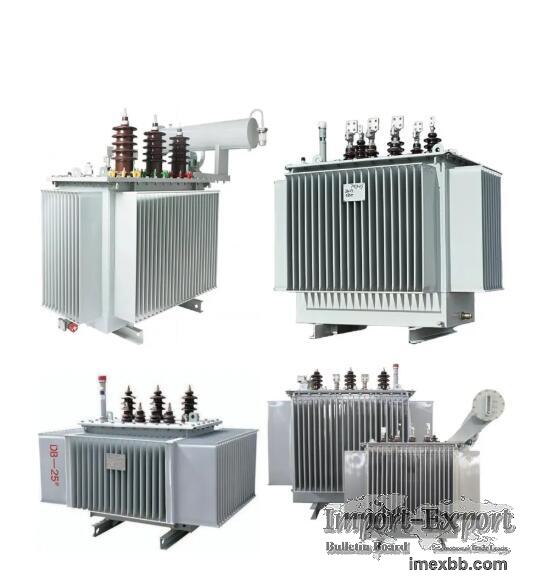

Oil Filled Three Phase Pole Mounted Distribution Transformer

The S22 series Three Phase Oil Immersed Transformers are constructed using
high-quality 30P series silicon steel from Shougang and Shanghai Baosteel,
featuring foil-wound electromagnetic coils and advanced insulation materials
and processes. Three phase oil immersed transformers are designed with high
heat resistance, high impact resistance, and a fully sealed structure to ensure
stable transformer oil quality, extending maintenance intervals.
The entire oil tank is composed of wavy chip radiators, treated
with phosphating and double-layer anti-rust coating, providing excellent aging
resistance.
The S22 series is a new energy-efficient Three Phase Oil Immersed Transformer
with a rated capacity ranging from 30KVA to 2500KVA, suitable for power
systems operating at voltages between 6KV and 11KV, making it the primary
equipment for small and medium-sized substations.
Product Standards:
·IEC 60076 Standard System for Power Transformers
·GB 1094 Power Transformer
·GB/T 15164 Oil-immersed power transformer load guide
·GB/T 6451 Three-phase oil-immersed power transformer technical parameters
and requirements
