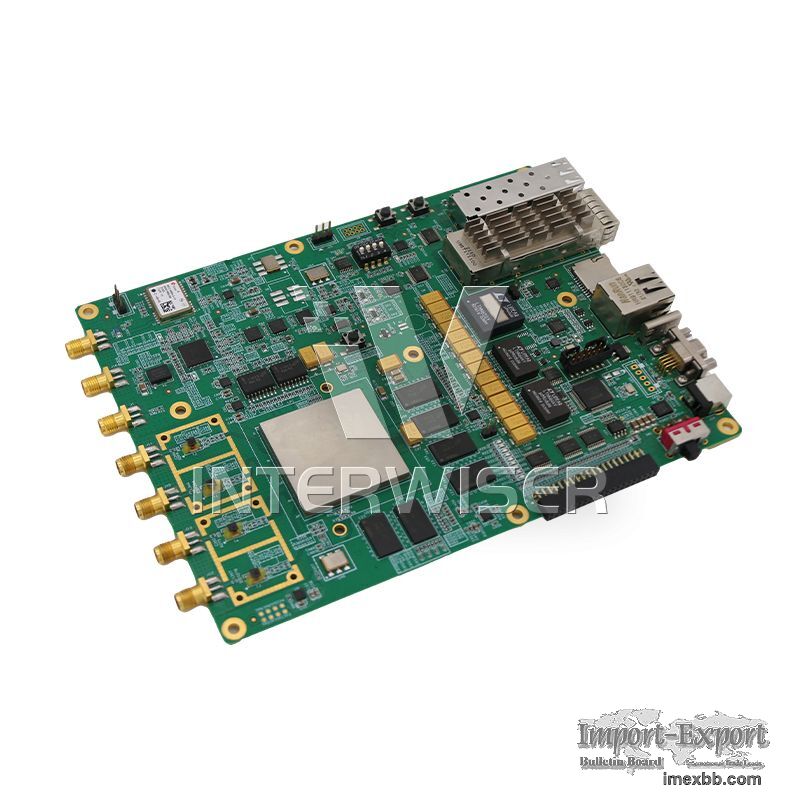

Open Source RFSOC Algorithm Verification Evaluation Board

The Mixed-signal processing card, which adopts the Xilinx ZYNQ UltraScale+
RFSoC ZU27DR as part of its Digital-Analog Hybrid Systems, provides access to
large FPGA gate density, 2-channel ADC/DAC ports, expandable I/O ports, and
DDR4 memory. It is suitable for various programmable applications. Equipped
with the ZU47DR FPGA, the 2T2R supports 2 channels of 12-bit, 4.0 GSPS ADC,
and 2 channels of 14-bit, 6.554 GSPS DAC ports.
RF transmit and RF receive ports are connected externally via high-performance
SMA  side-mounted RF connectors. The ZYNQ UltraScale+ RFSoC serves as the
core processing system, featuring a rich set of peripheral interfaces for
matching peripheral control signal transmission in signal processing. IW-
RFSOC-2T2R board features a 40Gbps QSFP connector providing a 10Gbps SFP
optical interface, capable of efficiently handling high-speed data in parallel
with analog and digital conversion. The PS and PL are respectively equipped
with 4GB DDR4 and 2GB DDR4 memory. It supports Micro SD card (supports UHS),
10/100/1000 Ethernet, USB JTAG/UART，and the board's JTAG loading mode shares
the UART output, a RS232 interface，a GPS module，and a GPIO expansion
interface for functional extensions.
