OPS-30 Optical CNC Probe System

OPS-30 optic probe system contains OP510 optical infrared probe, OSI-20
receiver and standard measuring software. The OP510 CNC xyz touch probe is a
compact 3D touch-trigger probe with optical signal transmission that is used
for workpiece measuring. OPS-30 optical transmission probe system mainly used
in various specifications of machine center, CNC milling machine, drilling
machine center and so on.

OPS-30 optical probing system contains OP510 optical infrared probe, OSI-20
receiver and standard measuring software. The OP510 CNC xyz touch probe is a
compact 3D touch-trigger probe with optical signal transmission that is used
for workpiece measuring. OPS-30 optical transmission probe system mainly used
in various specifications of machine center, CNC milling machine, drilling
machine center and so on.

Parameter of OPS-30 Optical CNC Infrared Probe System

OP510:
Measuring direction ±X,±Y,+Z
Arbitrary direction swinging angle X-Y±12°, Z +5 mm
Repeatability (2σ) ≤ 2 μm;
Trigger force in Z direction 600±30(g)
Trigger force in X-Y direction 40-80g)
Optical signal receiving/sending distance >5m
Model of the standard stylus M4-P50-RB6-S36
Model of the battery 14250,3.6 (V), 2 Pcs
Seal grade IP68

OSI-20:
Optical signal receiving/sending distance >5m
Input voltage 24±10% VDC
Output load current 50mA
Length of the cable 8m
Length of the cable retaining tube 2m
Seal grade IP68


Application of OPS-30 Optical CNC Infrared Probe System


Optical probes are suitable for small and medium-sized milling machines and
machining centers with automatic tool change.

Optical probe are used to set work-piece coordinate system and machining zero
points

Optical probe are used to detect and control the key dimensions, position
coordinates and their precision automatically between two processes

Technology of OPS-30 Optical Transmission Probe System


Probe switch on/off method::Range on/off、M code on/off;

Infrared coded signals are used to transmit information between the probe and
the receiver;

The transmitting distance of the probe signal can be adjusted by trigger probe
with special program to set the receiver;

Output four kinds of SSR signals to machine control system when probe is in the
states of trigger、error、probe batteries low and output pulse;

The OSI-20 receiver can change its logical state of the output signal by
setting;

Double infrared signal receiving and transmitting devices are used to increase
the reliability of the equipment;

The LED lights in the receiver show the working status of the probe system.

Harbin Pioneer M&E Technical Development Co, Ltd is a professional probe
company, we provide touch probe, probe cable, cnc tool setter and etc. Want to
know more? Please contact us.

Minimum Order: 1 sets

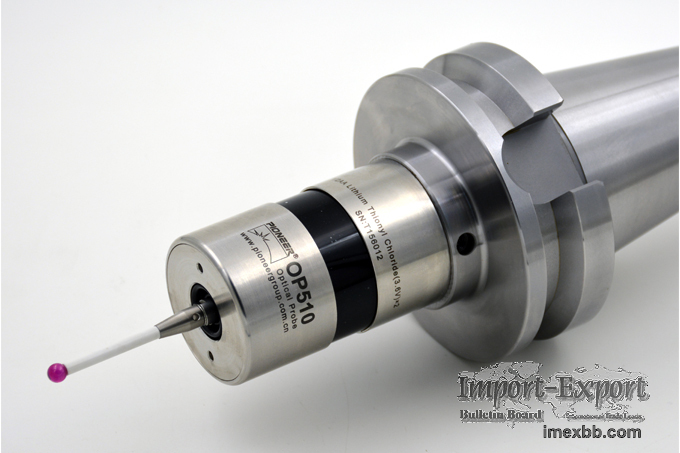

OPS-30 Optical CNC Probe System
