Product Overview:

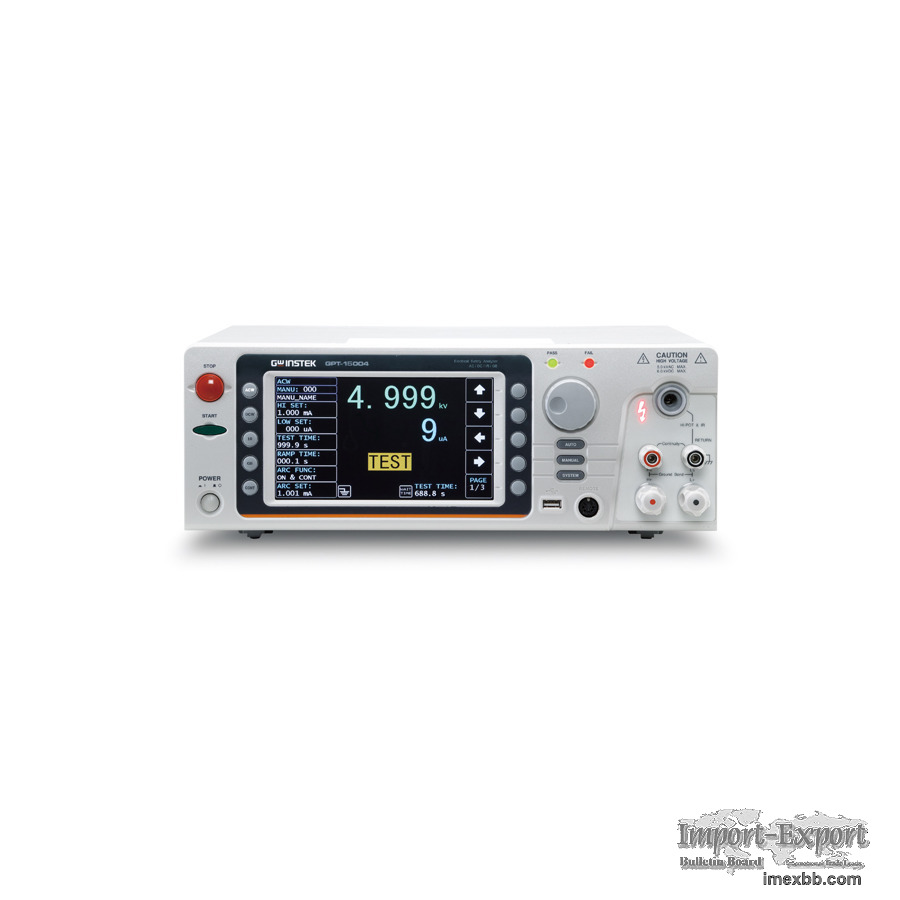

The Instek GPT-15004 is a versatile and comprehensive Hipot Tester and
Safety Analyzer designed for testing electrical products and components. It
combines AC, DC, IR, GB, and CG functions in a single instrument, providing
a complete solution for safety and performance evaluation.

Features:

AC Hipot Test:
Voltage range: 0 to 1500 VAC
Current range: 0 to 100 mA
Test modes: Dielectric withstand, insulation resistance, leakage current
DC Hipot Test:
Voltage range: 0 to 1500 VDC
Current range: 0 to 100 mA
Test modes: Dielectric withstand, insulation resistance, leakage current
IR Test:
Voltage range: 0 to 1000 VDC
Resistance range: 0 to 1000 MΩ
Test modes: Insulation resistance, continuity
GB Test:
Voltage range: 0 to 1500 VAC
Current range: 0 to 100 mA
Test modes: Ground bond resistance
CG Test:
Voltage range: 0 to 1500 VAC
Current range: 0 to 100 mA
Test modes: Ground continuity

Specifications:

Accuracy: ±0.5% of reading
Resolution: 0.1 V, 0.1 mA, 0.1 MΩ
Display: 4.3-inch color LCD
Interface: USB, RS-232, Ethernet
Safety: Complies with IEC 61010-1, IEC 61010-2-030

Minimum Order: 1 pieces
