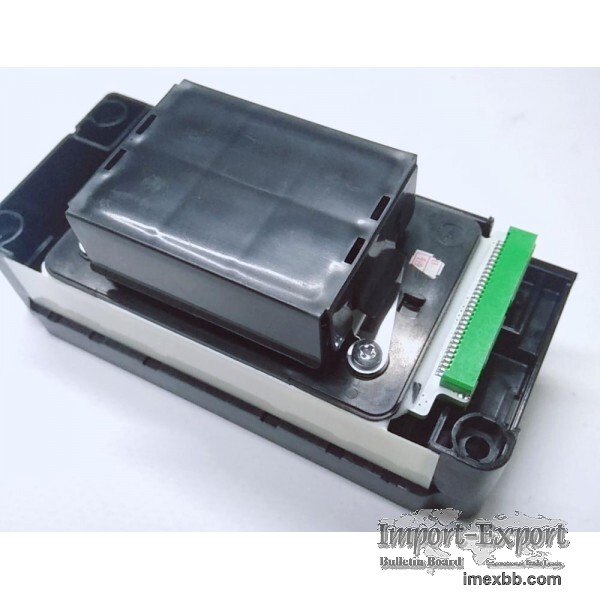

Original Mimaki JV33 JV5 Print Head M007947

Mimaki Print Head DX5 MP-M007947
Original Mimaki DX5 printhead for CJV30/JV33/JV5/TS3-1600/TS5-1600AMF Print Head - M007947

Original Mimaki JV33 / JV5 Print Head - M007947
Part Name, Mimaki JV33 / JV5 Print Head - M007947
Original or Compatible, Original

Part Number, M007947
Origin, Japan

The Mimaki JV33/JV5 original printhead is delivered in a sealed Mimaki package, with the Head ID, but without the Head Memory Board (you can safely re-use the Head Memory Board of the printhead you are replacing).



Compatible For
Aleph
TXB 160S
Mimaki
CJV30-100/CJV30-100BS/CJV30-130/ , CJV30-130BS/CJV30-160/CJV30-160BS/CJV30-60/CJV30-6 , 0BS/JV33-130/JV33-130BS/JV33-160/JV33-160BS/JV33-2 , 60/JV33-260BS/JV5-130S/JV5-160S/JV5-260S/JV5-320DS , /JV5-320S/TPC-1000/TS3-1600/TS5-1600AMF


This original Mimaki JV33/JV5 printhead is suitable for the Mimaki solvent CJV / JV printer series. The Mimaki JV33/JV5 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.

The Mimaki JV33/JV5 printhead is either used in 4-colours or 6-colours and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.

This generation of printheads allows fast speed, high resolution printing with eco-solvent and mild solvent inks. The original and complete Mimaki JV33/JV5 printhead is delivered with the Head ID and the Head Memory Board. Mimaki part number for this print head is M007947.

This printhead carries a one year manufacturer warranty.

Product Specifications

Technology: Micro-Piezo
Native resolution: 1440 dpi
Min. Droplet Size: 1.5 pico litre
Max. Droplet Size: 21 pico litre
Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
Firing Frequency: 8 kHz
Ink Compatibility: eco-solvent and mild solvent


It is highly recommended to replace the head cables together with a new printhead.
Printer compatibility
Mimaki CJV30-100
Mimaki CJV30-100BS
Mimaki CJV30-130
Mimaki CJV30-130BS
Mimaki CJV30-160
Mimaki CJV30-160BS
Mimaki CJV30-60
Mimaki CJV30-60BS
Mimaki JV33-130
Mimaki JV33-130BS
Mimaki JV33-160
Mimaki JV33-160BS
Mimaki JV33-260
Mimaki JV33-260BS
Mimaki JV5-130S
Mimaki JV5-160S
Mimaki JV5-260S
Mimaki JV5-320DS
Mimaki JV5-320S
Mimaki TPC-1000
Mimaki TS3-1600
Mimaki TS5-1600AMF

Minimum Order: 1 pieces
