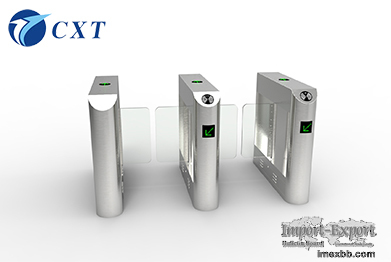

Outdoor Slim Swing Speed Gate

Founded in 2006, CXT Co.,Ltd. is a turnstile supplier. CXT tech dedicates to
providing all kinds of middle and high-class Turnstile solutions for
Integrators and Distributor worldwide with 12 years history.

Outdoor Swing Speed Gate Description:
CXT Slim Swing Speed Gate is a kind of swing optical product for a variety of
pedestrian, vehicle channel carefully developed an upgraded and innovative
high-tech Access control product.
It adopts the new industrial-grade circuit and ARM control system and the
unique mechanical design, combined with the characteristic of brush-less motor
drive technology and accurate limit of technology, those make the product
incomparable and revolutionary improved both in performance, lifespan,
stability, and cost performance etc.
Outdoor Swing Speed Gate Swing Features:
Adopt Brush-less motor, it has a longer lifespan.
Non polar collision avoidance,it has strong resistance to destruction.
Superego protection, it is the preferred choice for non-motorized vehicle
passageway.
Cutting edge new ARM technology, which has better expand-ability and high-cost
performance.
Merits for smooth running, speed adjustable and low wear.
Adopt module structure design, it has an easier operation and less maintenance.
Lane size can be set and has the good anti-pinch performance to protect
passengers.
Technical Parameter:
Model: CXT-BW135
Housing material: 304SST frame structure
Processing work-craft: Adopt Laser, bend, weld, polish and etc.
Dimension: 1200*200*1000mm
Weight: 45/55KG
Length length: 650mm(adjustable)
Motor: 24V/30W DC
LED guider: High brightness traffic status indication (Arrow flashing when
passing)
Working environment: Indoor and Outdoor
Suitable Temperature: -40℃ ～ 80℃
Suitable humidity: 5%-90%
Emergency measure: Gate will auto open when power off
Gate opening/closing time: 0.5s-2s (adjustable)
Passing speed: 30-40people/minute
Communication interface: RS232/dry contact

Octagonal swing turnstile Function Comparison Table：
Seq. Item name Market product CXT upgraded product
1 Transmission mode Brush motor Brush-less motor
2 Locating principle Optical coupling point Brush-
less intelligent positioning
3 Positioning mode Gear locating
Intelligent react force(unlock)
4 Buffering None Lasting buffer
5 Anti-reverse None has
6 Running speed Uniform speed Speed adjusted
7 Mechanical wear Big Small
8 Illegal mechanical alarm None has
9 Life-span 1-3Year 5- 8 year
10 Transmission life 3million times 8 million times
11 Date setting Dialing Numerical code button
12 Memory None has
13 Fire protection input has has
14 Feedback signal output has has
15 Normal open when power off has has

Minimum Order: 1 sets
