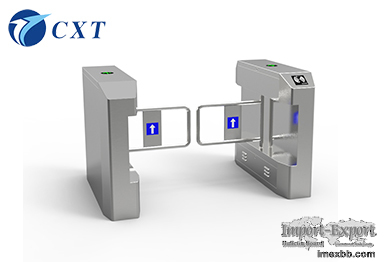

Stylish Steel Barrier Swing Turnstile

As one of the turnstile gate suppliers, CXT tech dedicates to providing all
kinds of middle and high-class Turnstile solutions for Integrators and
Distributor worldwide with 12 years history.

CXT Swing Turnstile Unique Features:
Adopt Brush-less motor, it has a longer lifespan.
Non polar collision avoidance,it has strong resistance to destruction.
Superego protection, it is the preferred choice for non-motorized vehicle
passageway.
Cutting edge new ARM technology, which has better expand-ability and high-cost
performance.
Merits for smooth running, speed adjustable and low wear.
Adopt module structure design, the swing gate lane has an easier operation and
less maintenance.
Lane size can be set and has the good anti-pinch performance to protect
passengers.
CXT Swing Turnstile Main Function:
Easy operation and convenient maintenance with functions of breakdown self-
check and alarm.
The internal swing barrier can be linked to an external control device and
receive the signal by the button or remote control, thus to realize one or bi-
direction passing control.
Auto reset function: Arm rotates 90 degree and auto resets after detection of
human/objects' passing, or auto cancels passing right and resets if there has
no valid passing within the specified time.
Lighting indicator: High brightness passing indication.
Anti-follow function

A.Anti-follow function: Arm rotates 120 degrees for normal passing and will
hold tight and alarm if there has trailing
B.(when equipped with infrared detection)infrared alarms if someone attempts to
trail when former person or objects are not fully passing through.

Pedestrian passing and vehicle passing models are optional.
Can be connected to the fire alarm signal, to realize continuous electric pole
normal open to evacuate people.
Alarm prompt function: Auto alarm for illegal passing or dash passing.
Speed adjustable: Multi-stage adjustable arm opening and closing speed, and can
be set according to the actual demand.
A new generation of industrial-grade ARM control system, to establish multi-
functional digital Settings, such as encryption and reset function.
Anti-reverse function: In the process of arm reset, if there has reverse force,
the arm will start anti-reverse function automatically and send out alarm till
external forces disappear, then back to zero for normal passing.
Auto self-protection function: when the arm is prevented by the external
continuous force, the system will auto detect for about 20 seconds and enter
into a dormant state. When receiving a legitimate signal input, the system will
automatically return to normal.
Multi-stage anti-collision( buffer function): illegal traffic or blunt brake,
brake lever buffer corresponding Angle and start immediately reverse thrust,
start the alarm at the same time, in the realization of human injury prevention
at the same time also greatly reduced because of the often or continuous
collision caused by mechanical damage
Arm normal open when power is off(free passing), auto reset when power is on.
(passing is controlled)
Oval shape swing Turnstile Technical Parameter:
Housing material: 304SS frame structure
Processing work-craft: Adopt Laser, bend, weld, polish and etc.
Standard Dimension: per different models
Weight: per different models
Arm length: 545mm(adjustable)
Lane Width: 1140mm(adjustable)
Voltage: AC220±10V,50HZ (notify if you have special requirement)
Motor: 24V/30W DC
LED guider: High brightness traffic status indication (Arrow flashing when
passing)
Working environment: Indoor and Outdoor
Suitable Temperature: -40℃ ～ 80℃
Suitable humidity: 5%-90%
Emergency measure: Gate will auto open when power off
Gate opening/closing time: 0.5s-2s (adjustable)
Passing speed: 30-40people/minute
Communication interface: RS485/TCP/IP

Oval Shape Swing Turnstile Function Comparison Table:
Seq. Item name Market product CXT upgraded product
1 Transmission mode Brush motor Brush-less motor
2 Locating principle Optical coupling point Brush-
less intelligent positioning
3 Positioning mode Gear locating
Intelligent react force(unlock)
4 Buffering None Lasting buffer
5 Anti-reverse None has
6 Running speed Uniform speed Speed adjusted
7 Mechanical wear Big Small
8 Illegal mechanical alarm None has
9 Life-span 1-3Year 5- 6 year
10 Transmission life 3million times 10million times
11 Date setting Dialing Numerical code button
12 Memory None has
13 Fire protection input has has
14 Feedback signal output has has
15 Normal open when power off has has

Minimum Order: 1 sets
