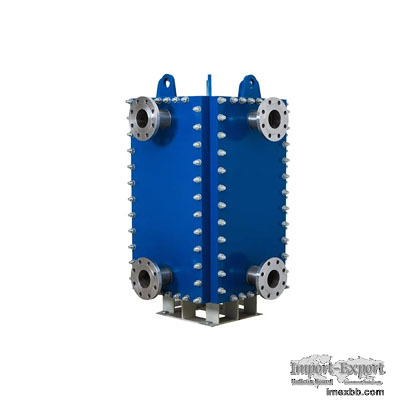

PanBloc welded plate heat exchanger

PanBloc welded plate heat exchanger is compact and efficient, although fully
welded, is totally accessible on both sides. With no interplate gaskets,
problems associated with conventional gasketed plate heat exchangers, such as
gasket compatibility, temperature and pressure , are eliminated.
The heart of PanBloc consists of laser welded corrugated heat transfer plates
of stainless steel or other exotic metals. The heart is enclosed and supported
by four corner columns, upper and lower heads and four panels. The totally
bolted design allows quick disassembly of the panels for inspection, service
and cleaning.
Adjustable and removable baffles allow easy variation of pressure drop to
satisfy any thermal performance requirement.
