PDC Cutters Customized PDC Cutters

PDC Cutters Customized PDC Cutters oil exploration PDC Cutters

PRODUCT DESCRIPTION

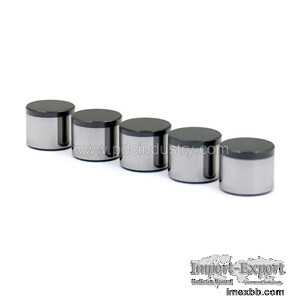

Introduction of PDC Cutters
Daoya PDC cutters are made of diamond micropowder and cemented carbide
substrate sintered under ultra-high pressure and high temperature. It has high
hardness, high wear resistance and thermal conductivity of diamond, and has the
strength and impact toughness of cemented carbide. Ideal for tools, drill bits
and other wear resistant tools.
Advantages of PDC Cutters:
1. Only for oil exploration applications;
2. Customized production according to customer's drawings and uses;
3. 4,800 square meters of factory, large-scale production;
4. High-end testing equipment to ensure product stability and quality;
5. Provide samples and responsible after-sales service.

Application of Customized PDC Cutters:
The pdc cutters have good wear resistance, self-sharpening properties and
impact resistance because of the unique production and inspection process, and
are widely applied to oil and natural gas drilling development and geological
drilling.
The products are proved to be very effective by feedback from many domestic and
foreign customers.

Structure of PDC Cutters:
Model specification Diameter (mm) Total height (mm) Diamond layer
thickness (mm) Composite layer chamfer ɑ Substrate chamfer ɑ
1308 13.44±0.03 8.00±0.02 2.0±0.05 0.3mm*45°
0.8mm*45°
1313 13.44±0.03 13.20±0.02 2.0±0.05 0.3mm*45°
0.8mm*45°
1316 13.44±0.03 16.00±0.02 2.0±0.05 0.3mm*45°
0.8mm*45°
1608 16.00±0.03 8.00±0.02 2.2±0.05 0.3mm*45°
0.8mm*45°
1613 16.00±0.03 13.00±0.02 2.2±0.05 0.3mm*45°
0.8mm*45°
1616 16.00±0.03 16.00±0.02 2.2±0.05 0.3mm*45°
0.8mm*45°
1908 19.05±0.05 8.00±0.02 2.3±0.05 0.3mm*45°
0.8mm*45°
1913 19.05±0.05 13.00±0.02 2.3±0.05 0.3mm*45°
0.8mm*45°
1916 19.05±0.03 16.00±0.02 2.3±0.05 0.3mm*45°
0.8mm*45°

PDC Industry is one of the diamond tools manufacturers, our main products
include diamond tools, pdc cutters, industrial diamonds, polishing pads, etc.
