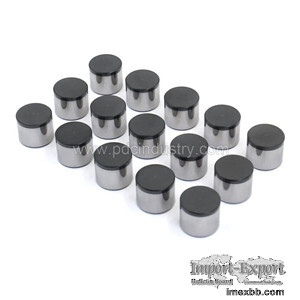

Introduction of PDC Cutters
PDC cutters are made of diamond micropowder and cemented carbide substrate
sintered under ultra-high pressure and high temperature. It has high hardness,
high wear resistance and thermal conductivity of diamond, and has the strength
and impact toughness of cemented carbide. Ideal for tools, drill bits and other
wear resistant tools.
Advantages of PDC Cutters:
1. Only for oil exploration applications;
2. Customized production according to customer's drawings and uses;
3. 4,800 square meters of factory, large-scale production;
4. High-end testing equipment to ensure product stability and quality;
5. Provide samples and responsible after-sales service.
Application of PDC Cutters:
The pdc cutters have good wear resistance, self-sharpening properties and
impact resistance because of the unique production and inspection process, and
are widely applied to oil and natural gas drilling development and geological
drilling.
The products are proved to be very effective by feedback from many domestic and
foreign customers.
Model specification Diameter (mm) Total height (mm) Diamond layer
thickness (mm) Composite layer chamfer ɑ Substrate chamfer ɑ
1308 13.44±0.03 8.00±0.02 2.0±0.05 0.3mm*45°
0.8mm*45°
1313 13.44±0.03 13.20±0.02 2.0±0.05 0.3mm*45°
0.8mm*45°
1316 13.44±0.03 16.00±0.02 2.0±0.05 0.3mm*45°
0.8mm*45°
1608 16.00±0.03 8.00±0.02 2.2±0.05 0.3mm*45°
0.8mm*45°
1613 16.00±0.03 13.00±0.02 2.2±0.05 0.3mm*45°
0.8mm*45°
1616 16.00±0.03 16.00±0.02 2.2±0.05 0.3mm*45°
0.8mm*45°
1908 19.05±0.05 8.00±0.02 2.3±0.05 0.3mm*45°
0.8mm*45°
1913 19.05±0.05 13.00±0.02 2.3±0.05 0.3mm*45°
0.8mm*45°
1916 19.05±0.03 16.00±0.02 2.3±0.05 0.3mm*45°
0.8mm*45°

We are a technology-based enterprise integrating technology development,
production and service of diamond polishing pads. We also provide industrial
diamond for sale.

Our website:www.pdcindustry.com
