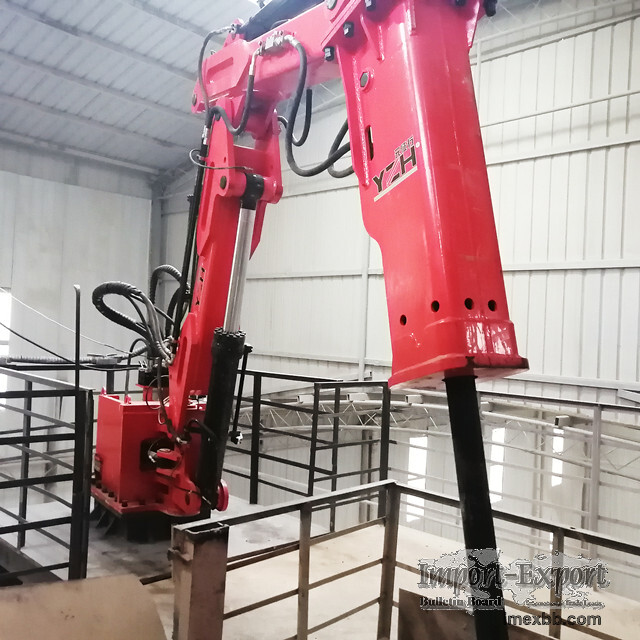

pedestal rock breaker boom system

pedestal rock breaker boom system

In the mining production scenario, the crusher feeder and underground chute
mouth lattice screen blockage jamming, as well as the crushing of oversized ore
problems, seriously restricting the production efficiency. YZH line launched a
pedestal rock breaker boom system has become the key to break the game, which
model BA300 pedestal rock breaker boom system is with excellent performance to
stand out, the next will take you in-depth understanding.

Characteristics of BA300
1.Section area of Boom:200×200×16MM
2.Boom weight (without hammer):1411kg
3.Rectangular tube design, steel structure is more stronger
4.Reinforced pivot point, oversized pin shaft, and heat-treated steel bushings
ensure superior strength and precision
5.170°rotation

Advantages
,
Green environmental protection and energy saving.pedestal rock breaker boom
system can achieve the dual purpose of no emission pollution and low energy
consumption. pedestal rock breaker boom system adopts advanced hydraulic power
system, in the process of crushing materials, mainly through the electricity
driven hydraulic to work, to avoid fuel to provide power to the atmospheric
environment pollution. In terms of energy consumption, the pedestal rock
breaker boom system uses optimised hammer design and energy efficient motor,
combined with the intelligent control system to accurately adjust the operating
power of the pedestal rock breaker boom system according to the characteristics
of the material and crushing demand, avoiding the waste of energy. Compared
with the traditional crusher, its energy consumption can be reduced by 30% -
50%. This low energy consumption is not only in line with the goal of energy
saving and emission reduction, but also saves a lot of electricity and fuel
expenses for enterprises and reduces production and operation costs.

Reduce the cost of use.Good maintenance performance is a highlight of the
pedestal rock breaker boom system, which effectively saves the cost of use of
the enterprise. pedestal rock breaker boom system adopts modular design
concept, the structure of each component is simple, easy to disassemble and
install. When the equipment malfunctions or needs to replace the worn parts,
the maintenance personnel can quickly locate the problem and carry out targeted
repair and replacement, which greatly shortens the maintenance time and reduces
the production loss caused by equipment downtime.

Selection of strong and wear-resistant materials.In addition, the pedestal rock
breaker boom system selects high-strength and excellent wear-resistant
materials to manufacture key components, such as the liner of the crushing
chamber, the hammer head, the rotary base, etc., which have relatively low wear
and tear and prolong the replacement cycle after a long time of use. At the
same time, the lubrication system of the pedestal rock breaker boom system is
carefully designed and adopts centralised lubrication, which can provide
lubrication for all moving parts in a regular and quantitative manner,
effectively reducing the friction loss between the parts and further improving
the service life of the equipment. According to statistics, compared with the
same type of crusher, the maintenance cost of pedestal rock breaker boom system
can be reduced by about 40%, which significantly improves the economic benefits
of enterprises.
Model No. Unit BA300
Boom weight (without hammer) kg 1411
Max.Horizontal working radius mm 4880
Max.Vertical working radius mm 3270
Min.Vertical working radius mm 1570
Max.Height mm 2710
Max .Working depth mm 3170
Rotation ° 170
Pedestal Size mm 1030×720
Power of Hydraulic Power Unit Kw 18/22/30

Minimum Order: 1 sets
