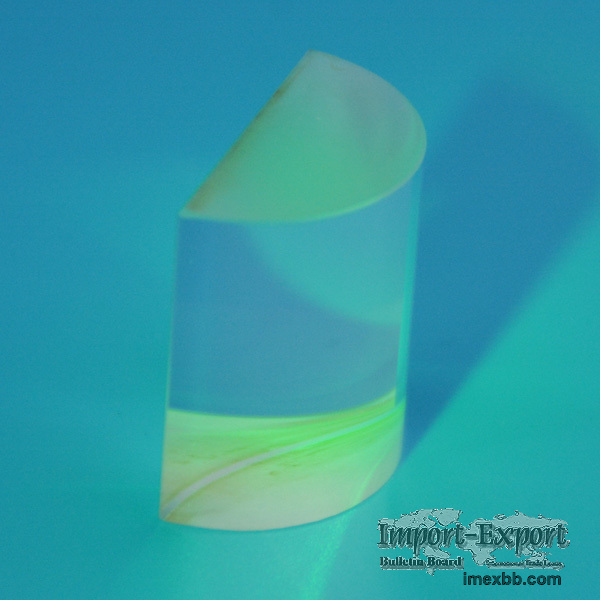

Plano Convex Cylindrical Lens

A plano-convex cylindrical lens is used to condense light in one axis. A
positive plano cylindrical lens is able to create a line image from a point of
light, to change the aspect ratio of an image or to focus collimated input
light to a line. Plano- convex cylindrical lenses are typically used for
illumination of slit and line detector arrays, laser projection, laser line
focussing and anamorphic beam shaping. If you have any demand, please contact
BRD Optical.

Descriptions Of Plano Convex Cylindrical Lens
The Plano spherical lens acts symmetrically on the incident light in both
directions, while the cylindrical convex lens acts in only one direction on the
incident light. A typical application is to shape a deformed beam with a pair
of plano convex cylindrical lenses. A pair of positive plano-convex cylindrical
lenses can be used to collimate and round the output of the laser diode.
Another possible application is to focus the diverging beam onto the detector
array with a single plano convex cylindrical lens. In order to minimize the
spherical aberration, when the collimated beams are concentrated into one line,
the collimated light should be incident on the curved surface of the lens, and
when the quasi-linear source is used, the line source should be incident on the
plane of the lens.

BRD Optical was founded in 2004, and is located in the city of Changchun-the
optic base of China with a beautiful view and profound optical culture. We have
state-of-the-art, modern technology machines for manufacturing and inspecting
all kinds of precision optics. BRD optical co. ltd occupies an area of 2,000
square meters, supported by 120 workers.

Minimum Order: 5 pieces
