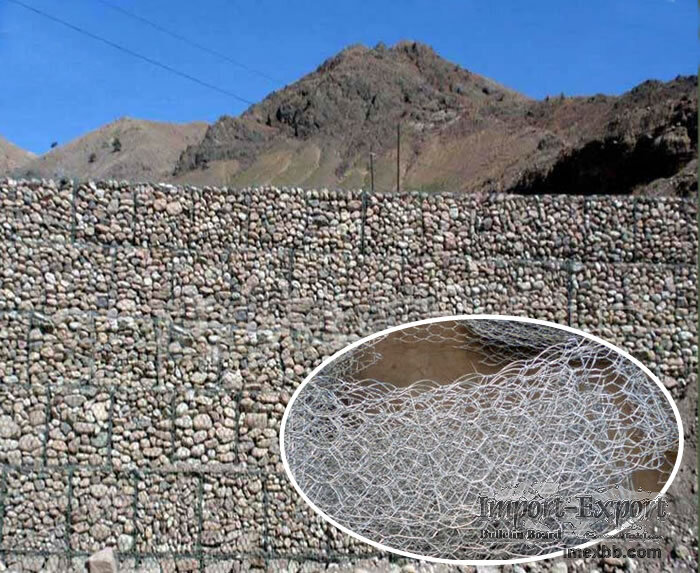

Planted Gabion Walls

Aerct supplies planted gabion walls system designed for creek slope
stabilization uses. We also supply technical support on how to detail,
specify, and construct the planted gabion walls. For American and South East
Asian market mainly.
Wire Mesh for Gabions
Wire mesh shall comply with the requirements of SAnS 1580 or equivalent. Wire
mesh shall be mechanically pre-fabricated to become a uniform hexagonal woven
mesh wherein the joints are formed by twisting each pair of wires through three
half-turns (commonly known as double twist), in such a manner that unravelling
is prevented.

The tightness of the twisted joints shall be such that a force of not less than
1.7 kN is required when pulling on one wire in order to separate it from the
other wire, provided each wire is prevented from turning under the applied
forces, and the wires are all in the same plane.

The diameter of the wire and the size of mesh used shall be as follows:

Wire Diameter (mm) Type of Gabion Mesh Size (m m)
Mesh Wire Selvedge
Gabion Boxes 100 x 120 2.7 3.4
Reno Mattress 80 x 100 2.2 2.7
We make inspections and tests to ensure that the materials supplied are in
accordance with this specification. And all materials comply with the
requirements of this specification.
