Gabion Mesh

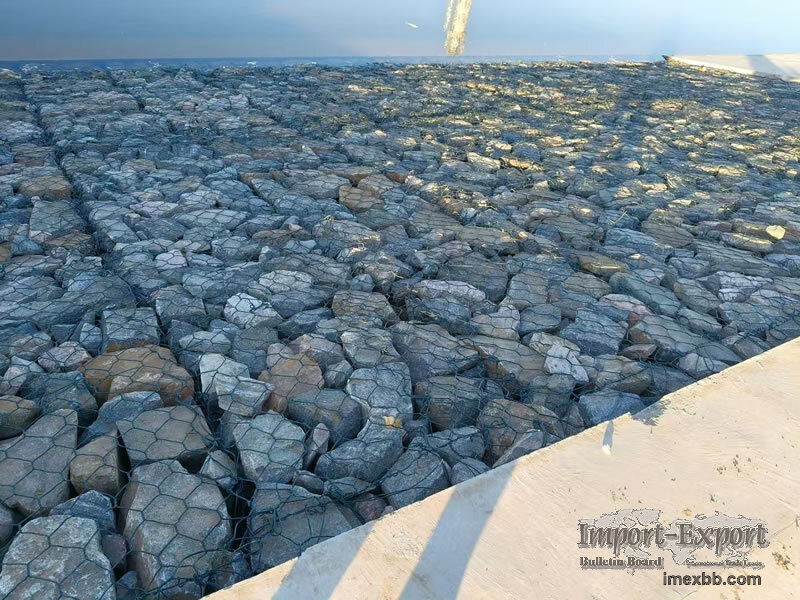

Gabion Mesh is used to make stone filled baskets for riverbank protection,
retaining walls, slope covering and flood control work. The mesh is made from
double twisted hexagonal steel wire. It can be supplied in galvanized wire or
PVC coated galvanized wire. Common openings are 60 × 80 mm, 80 × 100 mm, 80
× 120 mm, 100 × 120 mm, 100 × 150 mm and 120 × 150 mm. Bare wire diameter
usually ranges from 2.0 mm to 4.0 mm.
Youzi Development Zone, Anping County, Hebei, China
sales@wiremesh-fence.net
+86 133 8338 1333 / +86 13303187905
www.wiremesh-fence.net
Gabion Mesh is made from double twisted hexagonal steel wire mesh for stone
filled baskets, slope protection, riverbank work and retaining structures. It
can be supplied in galvanized wire or PVC coated galvanized wire. The mesh is
folded for transport and opened on site before stone filling. Common openings
include 60 × 80 mm, 80 × 100 mm, 80 × 120 mm, 100 × 120 mm, 100 × 150 mm
and 120 × 150 mm. Wire diameter depends on mesh opening and coating type.

Technical specifications
Material: Galvanized steel wire, PVC coated galvanized steel wire

Mesh Type: Double twisted hexagonal wire mesh

Opening Size: 60 × 80 mm, 80 × 100 mm, 80 × 120 mm, 100 × 120 mm, 100 ×
150 mm, 120 × 150 mm

Galvanized Wire Diameter: 2.0 mm to 4.0 mm

PVC Coated Wire Diameter: Inner wire 2.0 mm to 3.0 mm, outside diameter 3.0 mm
to 4.0 mm

Selvedge Wire: Usually one gauge thicker than mesh wire

Strands: 3

Surface Treatment: Galvanized, PVC coated galvanized

Supply Form: Mesh rolls, folded gabion baskets, cut panels, gabion mattress
panels

Packing: Folded bundles, rolls, pallet packing, or packing by order

Custom Options: Mesh opening, wire diameter, basket size, edge wire and coating
type

Applications
Riverbank protection, waterway guide work and flood control.
Slope protection, rockfall prevention and soil stabilization.
Retaining walls, bridge protection and drainage channel lining.
Coastal protection, landscape stone cages and erosion control projects.
