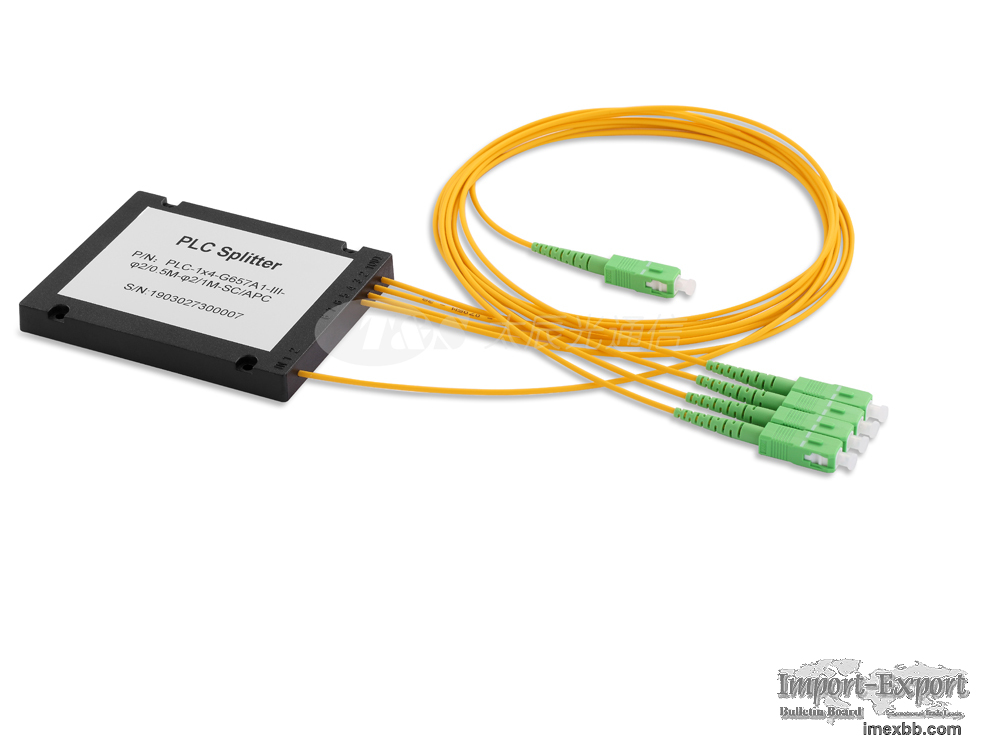

PLC SPLITTER

PLC SPLITTER
As a professional plc splitter manufacturer, T & S Communication produces a
planar optical waveguide chip on its own and manufactures PLC splitter with
self-developed PLC aligning equipment for automatic coupling. T&S PLC splitter
has a good consistency and stable quality. T&S has built 10000-class and 1000-
class dust-free workshops, and there are 32 sets of automatic alignment
systems. T&S plc splitter factory offers premium PLC splitters of various
packaging types including bare fiber type, mini type, box type, cassette type,
tray type and rack-mounted type PLC splitter are available. The current monthly
production capacity is 200000 PCs (1x8).

Features of PLC Splitter
Broadband Operation Wavelength
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
Pass Telcordia GR-1209-Core Reliability Test
Pass Telcordia GR-1221-Core Reliability Test
RoHS Compliance

Applications of PLC Splitter
Telecommunication sector
PON System
FTT
CATV
Video Transmission

Specifications of PLC Splitter
Item Unit Parameter
Operating Wavelength (nm) 1260 ~ 1650
1×N PLC Splitter -- 1×2 1×4 1×8 1×16 1×32 1×64
1×128
Insertion Loss MAX(P/S) (dB) 3.8/4.0 7.0/7.4 10.5/10.7
13.6/13.9 16.6/16.9 21/21.5 24/24.5
Uniformity MAX(P/S) (dB) 0.6/0.6 0.6/0.7 0.8/1.0 0.9/1.2 1.2/1.4
1.7/1.9 2.2/2.5
Return Loss MIN (dB) 55
PDL MAX(P/S) (dB) 0.15/0.25 0.15/0.25 0.2/0.25
0.2/0.3 0.25/0.3 0.25/0.35 0.4/0.45
2×N PLC Splitter -- 2×2 2×4 2×8 2×16 2×32 2×64
--
Insertion Loss MAX(P/S) (dB) 4.0/4.3 7.4/7.6 10.7/11.0 14/14.5
17.5/18 21.4/21.9 --
Uniformity MAX(P/S) (dB) 0.9/1.1 1.0/1.2 1.0/1.2 1.2/1.5 1.5/1.8
2.0/2.3 --
Return Loss MIN (dB) 55
PDL MAX(P/S) (dB) 0.25/0.3 0.25/0.3 0.25/0.3
0.3/0.35 0.3/0.35 0.35/0.4 --
Fiber Type -- ITU-T G657A1 , G657A2
Temperature Stability(-40~85℃) MAX (dB) 0.5( Typical 0.3 )
Operating Temperature (℃) -40 ~ 85
Storage Temperature (℃) -40 ~ 85

T&S Communications is a professional fiber optic products supplier, we provide
plc splitter 1x4, 1x8 plc splitter and etc. Want to know more? Please contact
us.
